Male Bspp X Male Metric

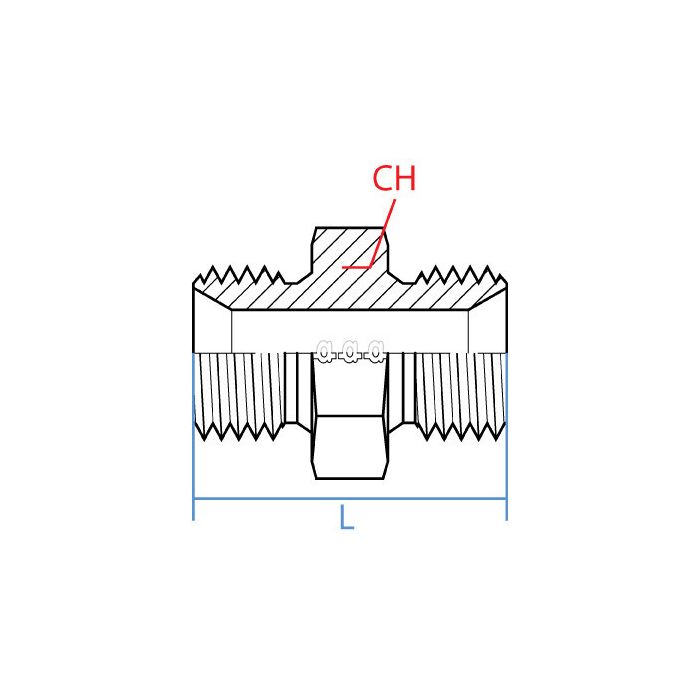

CH Width 27mm	L Length 32.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-04-22	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work to connect a 1/4" BSPP male to a M22 X 1.5 metric male? Just making sure I'm understanding the description right.

Question by: Keith E on Jan 12, 2026, 8:34 PM

Yes, that's exactly what this adapter is for. It has a 1/4" BSPP male connection on one side and a M22 X 1.5 metric male connection on the other, so it should work perfectly for that.

Answer by: Customer Support on Jan 14, 2026, 3:12 PM

Got a metric port on a manifold block calling out M22 x 1.5 and need to tie into a BSPP line running G 1/4 - 19. this adapter do that job straight across?

Question by: Ralph G on Oct 5, 2025, 5:54 PM

That's what this one's built for. One end is G 1/4-19 BSPP male and the other is M22 x 1.5 metric male, so it bridges those two thread standards in a single straight fitting. Steel construction, 32.1mm long, 27mm wrench flats. As long as your port and your line match those callouts, it'll drop right in.

Answer by: Customer Support on Oct 7, 2025, 6:34 AM
