Male Orfs X Female Jis

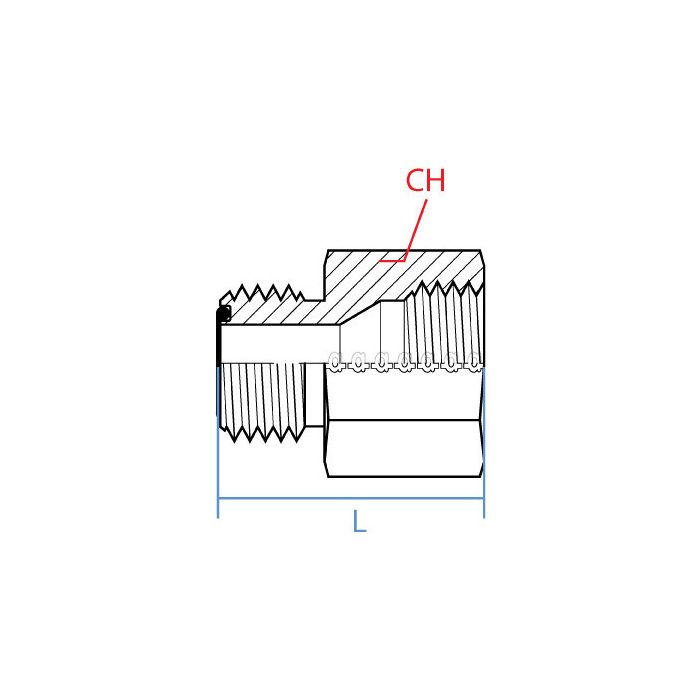

CH Width 35mm	L Length 63.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jis	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6220-12-12	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook an ORFS hose up to a JIS port. is this the right adapter, or am i mixing up thread types?

Question by: Earl J on Nov 9, 2025, 12:50 PM

For an inline ORFS to JIS connection, this adapter bridges a male ORFS end to a female JIS end. Side 1 is male ORFS with a 1-13/16 - 12 UN thread callout, and side 2 is female JIS with a G 3/4 - 14 callout, both in the 3/4 inch size.

Answer by: Customer Support on Nov 11, 2025, 11:06 AM

Will this here adapter fit a regular ol' 3/4" pipe?

Question by: Dean H on Oct 29, 2025, 6:15 AM

No, this adapter won't fit a standard 3/4" pipe thread. The 3/4" size refers to the ORFS and JIS thread types it connects, not a typical NPT pipe thread.

Answer by: Customer Support on Oct 30, 2025, 7:49 PM
