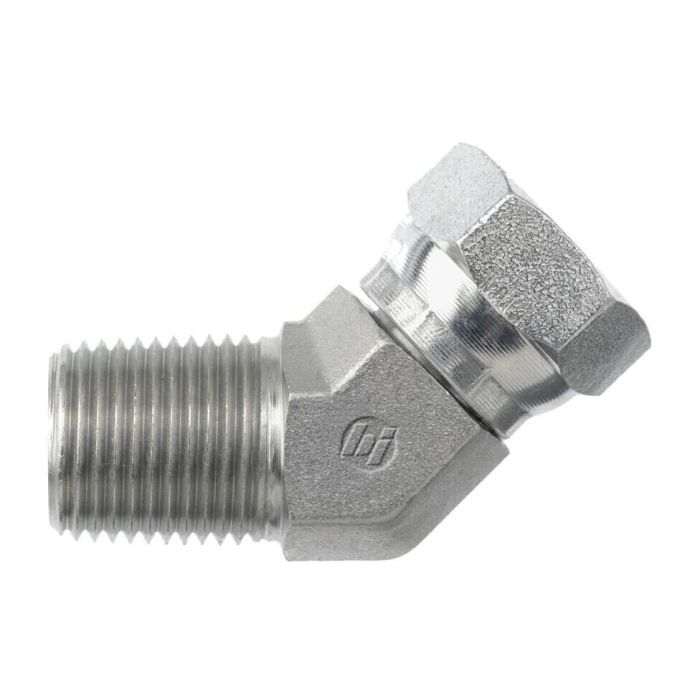

16MP-20FPS 45 DEG Elbow

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1503-16-20-FG	Product Weight 1.27 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 1-11-1/2 male nptf on one side and need to swing into a 1-1/4-11-1/2 female swivel, is that what this elbow is?

Question by: Roy Y on May 26, 2025, 6:25 PM

For fitment, it is a 45 degree forged steel elbow with a male NPTF thread on B1 (1-11-1/2, SAE J476) and a female NPSM swivel on B2 (1-1/4-11-1/2, SAE J514).

Answer by: Customer Support on May 28, 2025, 2:55 PM

what's the pressure rating on this elbow, and is it safe for dynamic hydraulic lines?

Question by: Hubert R on Jul 5, 2025, 7:03 AM

Rated at 2,000 PSI maximum dynamic pressure, so it holds up fine in active hydraulic circuits where pressure is constantly cycling. The forged steel construction keeps it solid under that kind of load. Just make sure your system stays within that ceiling and you won't have any issues.

Answer by: Customer Support on Jul 6, 2025, 8:05 AM

What's the pressure rating on this elbow fitting?

Question by: Duane P on May 4, 2025, 9:07 AM

Maximum dynamic pressure is rated to 2,000 psi.

Answer by: Customer Support on May 5, 2025, 5:35 PM
