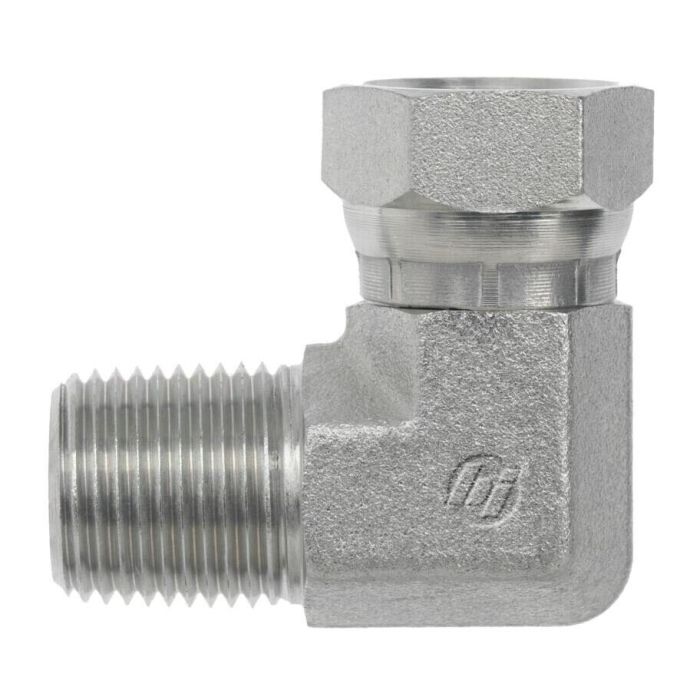

#16 MP X #16 FP Swivel 90*

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1501-16-16-FG	Product Weight 1.00 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight spot on a skid, what are the overall length and centerline dims on this 90?

Question by: Dean P on Feb 4, 2026, 8:11 AM

For layout, the overall length is 1.970 mm. The two centerline lengths are 1.890 mm and 1.540 mm, which helps when you are checking clearances around the elbow.

Answer by: Customer Support on Feb 5, 2026, 6:30 PM
