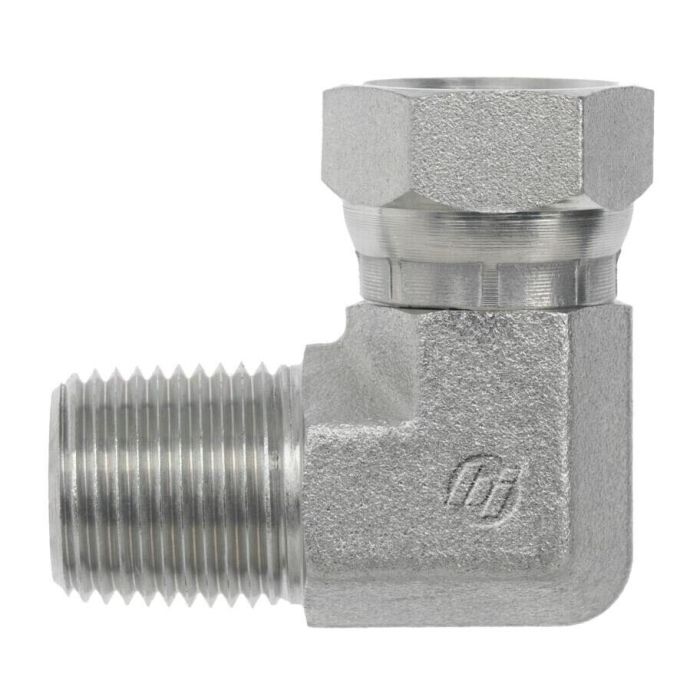

#6 MP X #6 FP Swivel 90*

For compact routing, the 90 degree elbow layout lets you change direction while keeping the overall length to 1.220 inches, with centerline lengths of 1.200 and 0.990 inches.

One end is a male NPTF thread, the other is a female NPSM swivel, both sized at 3/8-18. NPTF threads are a dry-seal design, meaning the thread form itself creates the seal under pressure rather than relying on tape or compound. The swivel end follows SAE J514, which is a standard built around leak-free hydraulic connections. For most hydraulic line work, you won't need additional sealant on the NPTF side to get a solid seal.

Forged steel construction means this elbow can handle demanding hydraulic jobs. It's rated for dynamic pressures up to 6,000 psi, so it should hold up well for continuous use in most industrial setups.
