90*Male Orfs X Mmetric Adj Elb

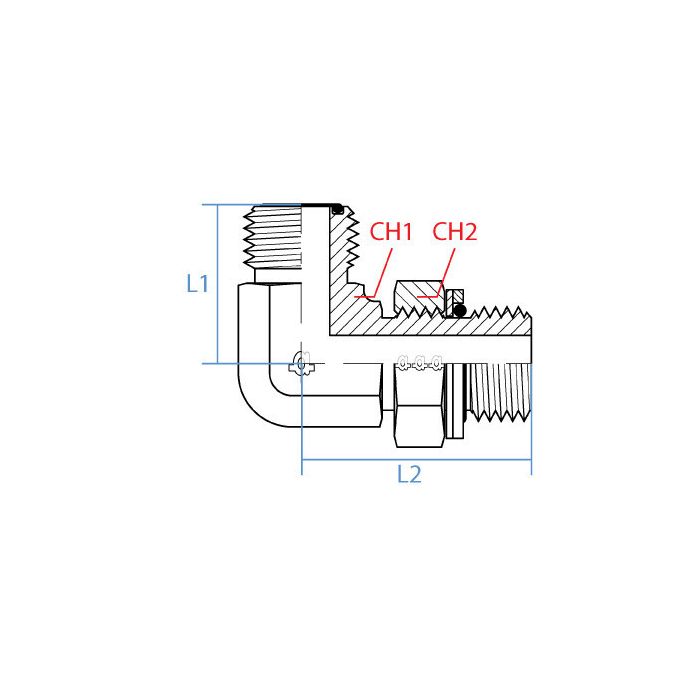

CH1 Width 36mm	CH2 Width 41mm	L1 Length 42mm	L2 Length 60mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout M33 X 2.0	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-16-33	Product Weight 1.28 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on a cylinder that's M33 x 2.0 and need to tie into a 1" ORFS line, this elbow gonna work for that?

Question by: Dustin H on Mar 28, 2026, 9:59 AM

That's what this fitting is built for. One end is 1-7/16-12 UN Male ORFS, which is your standard 1" ORFS thread, and the other end is M33 x 2.0 Male Metric. Both male threads, so make sure your ports on each side are female. The 90-degree angle helps when you're working in a tight spot and a straight adapter just won't give you the routing you need.

Answer by: Customer Support on Mar 30, 2026, 6:48 AM
