45* Male Orfs X Mbspp Adj. Elb

This 45° elbow adapter is designed with a male ORFS (O-Ring Face Seal) connection on one side and a male BSPP (British Standard Pipe Parallel) connection on the other. This ensures compatibility with various hydraulic applications that use these standards.

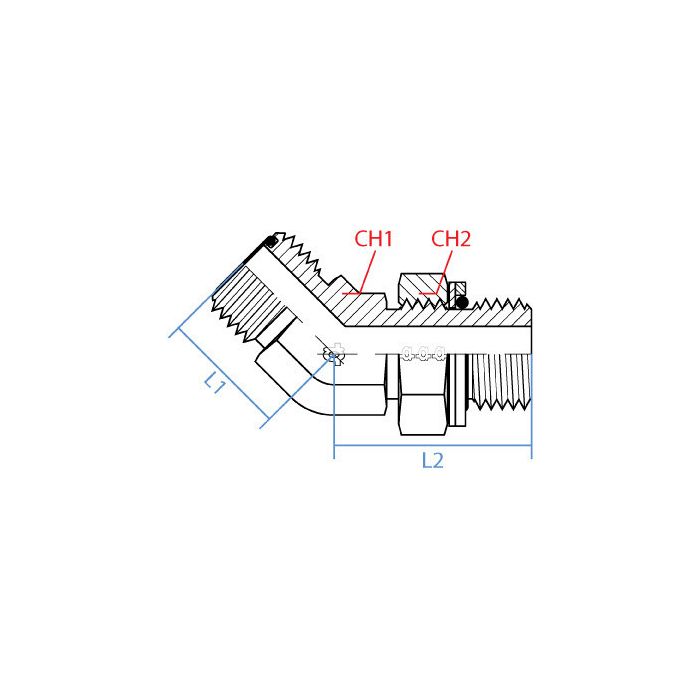

Yeah, that setup lines up well here. The BSPP side on this fitting is a G 1/2-14 thread, which is a standard half-inch BSPP parallel thread. The ORFS side runs 13/16-16 UN, also sized at half-inch. The 45-degree angle is what makes it useful in cramped spots since it lets you redirect the line without needing additional elbows or couplings stacked in line. Both channels measure 26.5mm wide, and the two lengths come in at 23mm and 42mm, so there's enough reach on each end to make a clean, secure connection without fighting the surrounding hardware.

For adapting between those two thread styles, it’s the right kind of fitting. One end is a 1/2 inch male ORFS with 13/16-16 UN threads, and the other end is a 1/2 inch male BSPP with G 1/2-14 threads, all in a 45 degree elbow.
