Adaptall Din X F Din Swivel Branch Tee 5387S-20

Specifications

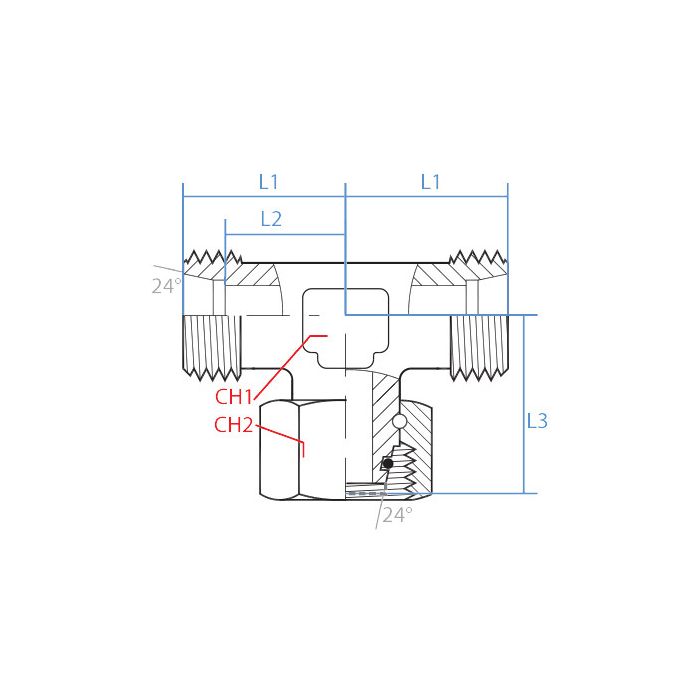

CH1 Width 27mm	CH2 Width 36mm	L1 Length 37mm	L2 Length 26.5mm	L3 Length 44.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender F	Side 3 Size S20	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387S-20	Product Weight 0.97 lbs

Product Questions & Answers 3

Product Questions & Answers

got a DIN tube setup with M30 x 2.0 on it, will this tee match up on all three ports?

Question by: Ralph W on Sep 13, 2025, 11:14 AM

All three sides are M30 x 2.0 DIN tube connections. Side 1 and Side 2 are male (S20), and the branch side is a female DIN tube swivel (also S20), so it matches that thread size across the tee.

Answer by: Customer Support on Sep 15, 2025, 6:13 AM

Will this swivel tee work for connecting three lines that all have M30 x 2.0 threads?

Question by: Merle W on Feb 1, 2026, 7:21 AM

Yes, it will. This Adaptall tee features M30 x 2.0 threads on all three sides, so you can easily connect three lines with the same thread size.

Answer by: Customer Support on Feb 3, 2026, 6:15 AM

All three ports on this thing are M30 X 2.0, that right? Trying to figure out if the threads match up on both the male and female sides before I order.

Question by: Rusty P on Jul 22, 2025, 9:58 AM

all three connections run M30 X 2.0 thread. Two of the ports are male DIN tube and the third is female DIN tube, so the thread pitch is consistent across the whole fitting. That makes it a lot easier to work into an existing DIN-based hydraulic line without mixing thread specs.

Answer by: Customer Support on Jul 24, 2025, 6:15 AM
