Adaptall Din X F Din Swivel Branch Tee 5387L-28

Specifications

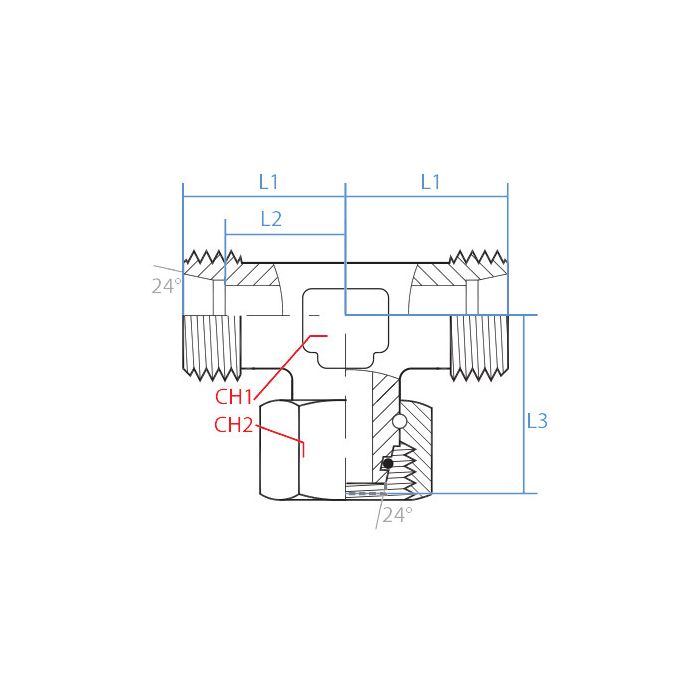

CH1 Width 37mm	CH2 Width 46mm	L1 Length 38mm	L2 Length 30.5mm	L3 Length 41.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender F	Side 3 Size L28	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-28	Product Weight 1.08 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda material is this tee made outta? Steel, right?

Question by: Carl J on Oct 15, 2025, 7:33 AM

That's correct, this tee fitting is made from steel.

Answer by: Customer Support on Oct 17, 2025, 8:54 AM

all three ends on this fitting are DIN tube type -- does that mean I can't mix in any NPT or JIC lines on the same tee?

Question by: Cody P on Jul 13, 2025, 4:13 PM

Correct. Every port on this tee is DIN tube, M36 X 2.0, size L28. Two of the ends are male and one is female, but all three are DIN only. If your system has NPT or JIC connections, you'd need a separate adapter upstream of this fitting rather than mixing connection types at this tee.

Answer by: Customer Support on Jul 14, 2025, 5:24 PM

trying to tie three DIN tube lines together, what are the ends on this tee?

Question by: Cheryl G on Oct 18, 2025, 6:18 PM

All three ports are DIN tube connections with M36 x 2.0 threads in size L28. Two ends are male, and the branch end is a female M36 x 2.0 L28 swivel connection.

Answer by: Customer Support on Oct 20, 2025, 1:48 PM
