Adaptall 45* Din X F Din Swivel 5362S-20

Specifications

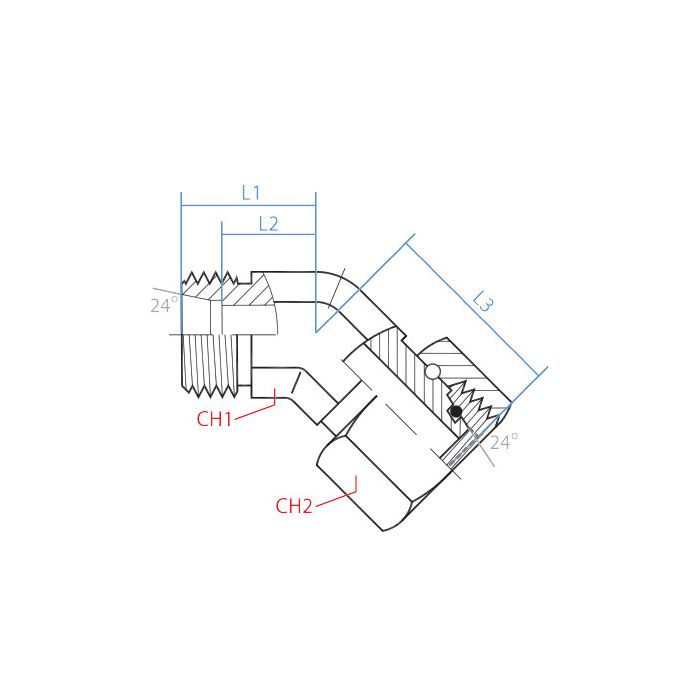

CH1 Width 33mm	CH2 Width 36mm	L1 Length 26.5mm	L2 Length 16mm	L3 Length 44.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size S20	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362S-20	Product Weight 0.82 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the width of the flats on each end of this fitting? I need to get my wrenches right.

Question by: Dale C on Aug 20, 2025, 1:14 PM

The wrench flats are different sizes. One side (Adaptall Ch1) is 33mm wide, and the other side (Adaptall Ch2) is 36mm.

Answer by: Customer Support on Aug 22, 2025, 6:13 AM

both sides on this fitting are DIN tube connections, does that mean I can't use it to tie into anything that ain't DIN on either end?

Question by: Roger M on Jan 28, 2026, 11:24 AM

Correct. Both sides carry a DIN tube connection, M30 X 2.0 thread with an S20 size, so you'd need DIN-compatible fittings on each end to make a proper connection. One side is male and the other is female, which is what the swivel designation refers to, but neither side crosses over to a different thread standard. If your existing lines are DIN, you're in good shape. If not, you'd need an adapter somewhere else in the line.

Answer by: Customer Support on Jan 30, 2026, 6:04 AM
