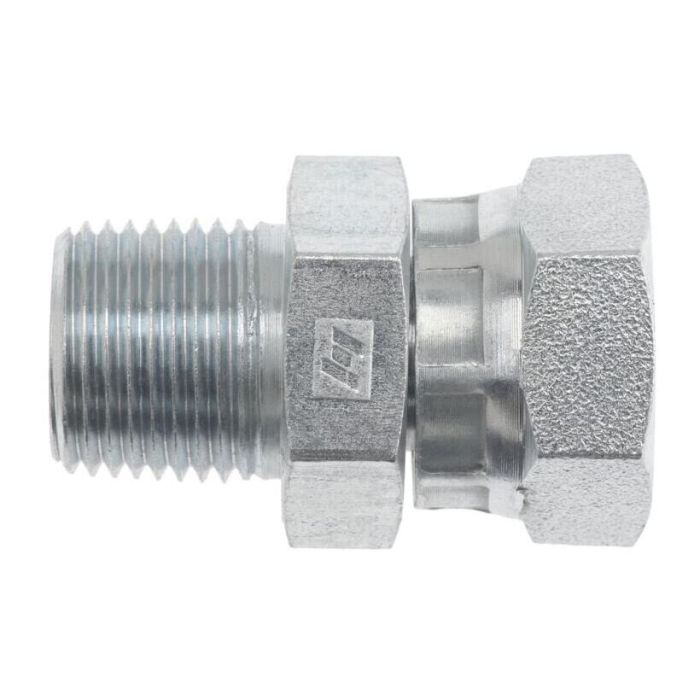

12MP-16FPS STRAIGHT 1404-12-16

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1404-12-16	Product Weight 0.49 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a 3/4-14 male NPTF port on a hydraulic manifold and need to swivel a 1-11-1/2 female line onto it without leaking, this the right adapter for that?

Question by: Kurt M on Jun 24, 2025, 9:36 AM

That's exactly the connection this adapter is built for. One end is a 3/4-14 male NPTF thread conforming to SAE J476, and the other is a 1-11-1/2 female NPSM swivel per SAE J514. The swivel end lets the hose or line rotate during installation so you're not fighting twist, and the NPTF male side gives you a solid dry-seal connection at the port. Rated to 2,500 psi dynamic pressure, so it'll hold up in most standard hydraulic circuits without issue.

Answer by: Customer Support on Jun 26, 2025, 6:22 AM

trying to match up threads here, what are the two ends on this 12MP-16FPS straight adapter?

Question by: Stan K on Dec 11, 2025, 3:54 PM

On one side it has a 3/4-14 male NPTF thread built to SAE J476. The other side is a 1-11-1/2 female NPSM swivel thread built to SAE J514.

Answer by: Customer Support on Dec 13, 2025, 6:14 AM

Reckon this'll fit right with my setup? I'm usin' a 1-11/2 female NPSM swivel.

Question by: Dale B on May 10, 2025, 6:08 AM

This adapter's got you covered there. It's made with a 1-11/2 female NPSM swivel thread designed to meet SAE J514 specs. Should be a good match.

Answer by: Customer Support on May 11, 2025, 5:02 PM
