Adaptall 45* Din X F Din Swivel 5362S-16

Specifications

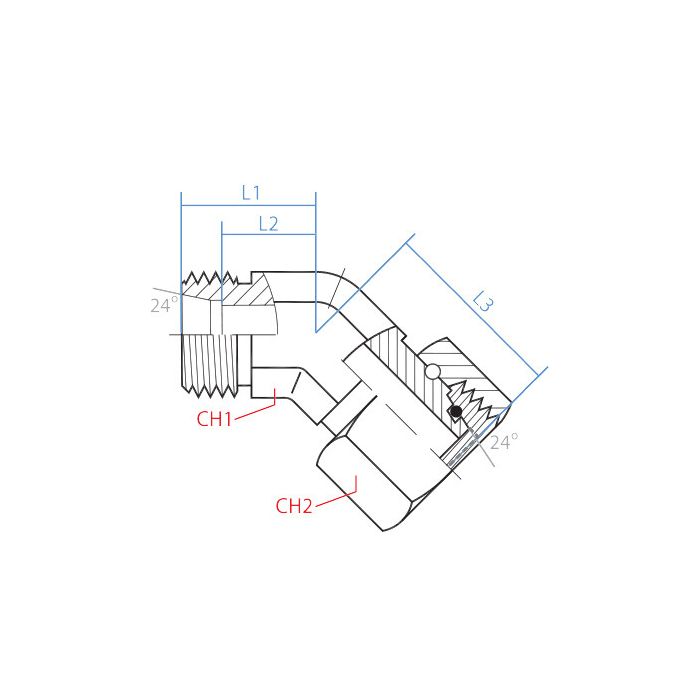

CH1 Width 27mm	CH2 Width 30mm	L1 Length 24mm	L2 Length 15.5mm	L3 Length 36.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362S-16	Product Weight 0.48 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda steel is this thing made from? Gotta make sure it can handle the pressure.

Question by: Ross M on May 16, 2025, 2:56 PM

This elbow fitting is made from high-quality steel, designed to provide durability in demanding industrial hydraulic systems.

Answer by: Customer Support on May 17, 2025, 7:36 PM

trying to swap out a 90 with a 45, is this one M24 x 1.5 on both ends or just one side?

Question by: Debbie R on Jan 24, 2026, 9:29 AM

Both sides are M24 x 1.5 DIN Tube connections. Side 1 is male (S16) and side 2 is female (S16), so it is set up as an M24 x 1.5 male to M24 x 1.5 female 45 degree swivel elbow.

Answer by: Customer Support on Jan 26, 2026, 6:09 AM

Both sides on this fitting are M24 x 1.5 thread, does one end screw into a fixed port and the other spin free, or how's the swivel part work exactly?

Question by: Kurt M on Jul 19, 2025, 7:01 PM

One side is male and one side is female, both carrying that M24 x 1.5 DIN tube thread. The swivel function lets the female end rotate independently once the fitting is assembled into your line, which keeps hose or tube from twisting under pressure or during routing. That rotation is what makes it useful when your connection points don't line up cleanly and you need some give without stressing the joint.

Answer by: Customer Support on Jul 21, 2025, 2:28 PM
