Adaptall 45* Din X F Din Swivel 5362S-10

Specifications

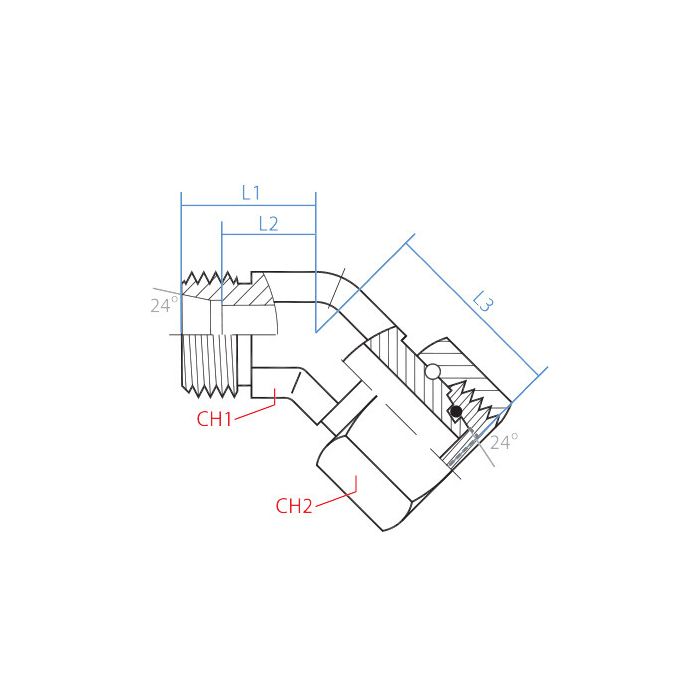

CH1 Width 19mm	CH2 Width 22mm	L1 Length 21mm	L2 Length 13.5mm	L3 Length 30mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362S-10	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Both ends are M18 x 1.5 DIN tube, but one's male and one's female, does that mean this fitting can connect two lines inline or is it meant to join a male DIN port on equipment directly?

Question by: Dustin P on Jul 4, 2025, 6:56 AM

The male end threads into a female DIN port, and the female end receives a male DIN tube fitting, so you're building a swivel connection at a 45-degree angle between two points in a hydraulic line. It's not a straight inline coupler. The 45-degree elbow shape means you're using it where the line needs to change direction and you want rotational flexibility at that joint to reduce stress on the tubing.

Answer by: Customer Support on Jul 5, 2025, 1:38 PM

got a tight spot, is this elbow the 45 degree style and does one end swivel?

Question by: Brett S on Dec 23, 2025, 8:07 PM

Built as a 45° elbow, it gives you an angled turn, and the female DIN tube end is a swivel for easier alignment during hookup.

Answer by: Customer Support on Dec 25, 2025, 7:20 AM

Just want to make sure, this is a 45 degree elbow, right? Don't want to order the wrong thing.

Question by: Dwight D on Aug 14, 2025, 9:28 AM

Correct, this Adaptall fitting is a 45-degree elbow. It's designed for DIN tube connections on both ends, one male and one female, both M18 X 1.5, and size S10.

Answer by: Customer Support on Aug 15, 2025, 8:13 PM
