Adaptall 45* Din X F Din Swivel 5362S-08

Specifications

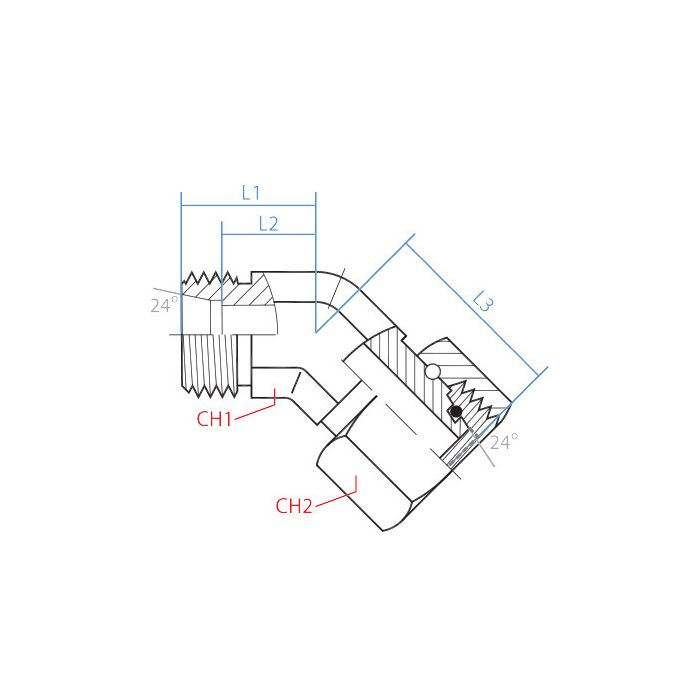

CH1 Width 14mm	CH2 Width 19mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362S-08	Product Weight 0.14 lbs

Product Questions & Answers 3

Product Questions & Answers

Both sides on this thing are M16 x 1.5 DIN tube fittings, right? Just want to make sure before I go swapping anything out on the line.

Question by: Roy C on May 14, 2025, 6:54 PM

Correct on both counts. Side 1 is a male M16 x 1.5 DIN tube connection and Side 2 is female, same thread callout. So if your existing line already runs M16 x 1.5 DIN on both ends of the joint you're replacing, this adapter drops right in without any thread conversion needed.

Answer by: Customer Support on May 16, 2025, 6:11 AM

trying to swap out an old swivel elbow, is this one male M16 x 1.5 on one side and female M16 x 1.5 on the other?

Question by: Roger A on Jan 27, 2026, 10:50 AM

It is a 45° DIN tube swivel adapter with a male M16 x 1.5 DIN tube end on Side 1 and a female M16 x 1.5 DIN tube end on Side 2, both in size S08.

Answer by: Customer Support on Jan 29, 2026, 6:51 AM

Will this here fitting work with standard metric hydraulic lines?

Question by: Daryl F on Feb 21, 2026, 11:49 AM

This adapter is designed to connect M16 x 1.5 DIN tubes, ensuring compatibility with systems using those specific dimensions.

Answer by: Customer Support on Feb 22, 2026, 12:42 PM
