45* Din X F Din Swivel

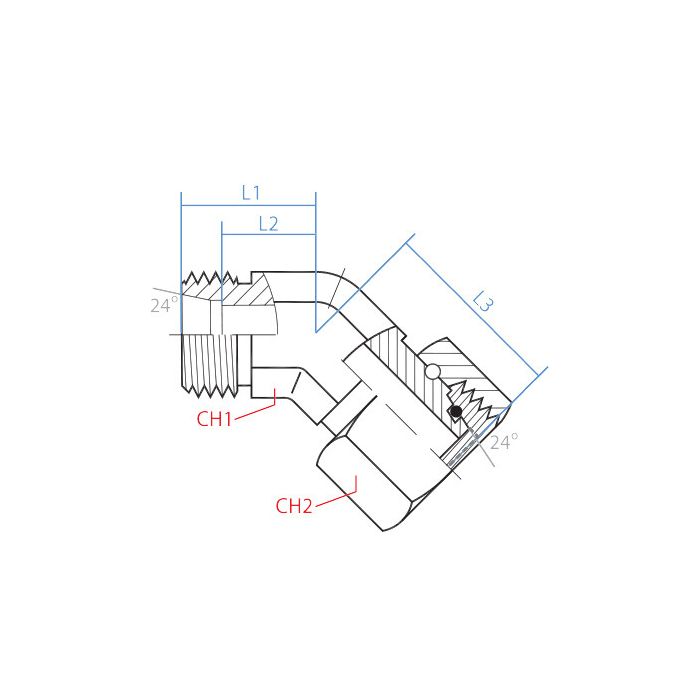

CH1 Width 14mm	CH2 Width 17mm	L1 Length 16mm	L2 Length 9mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size S06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362S-06	Product Weight 0.10 lbs

Product Questions & Answers

What's the deal with the angle on this fitting? Is it a true 45 degrees? Just want to make sure it'll fit in the space I have.

Question by: Troy S on May 4, 2025, 9:50 PM

This elbow's got a precise 45-degree bend, perfect for rerouting lines when you're tight on space and a straight fitting would cause issues.

Answer by: Customer Support on May 6, 2025, 6:35 AM
