45* Din X F Din Swivel

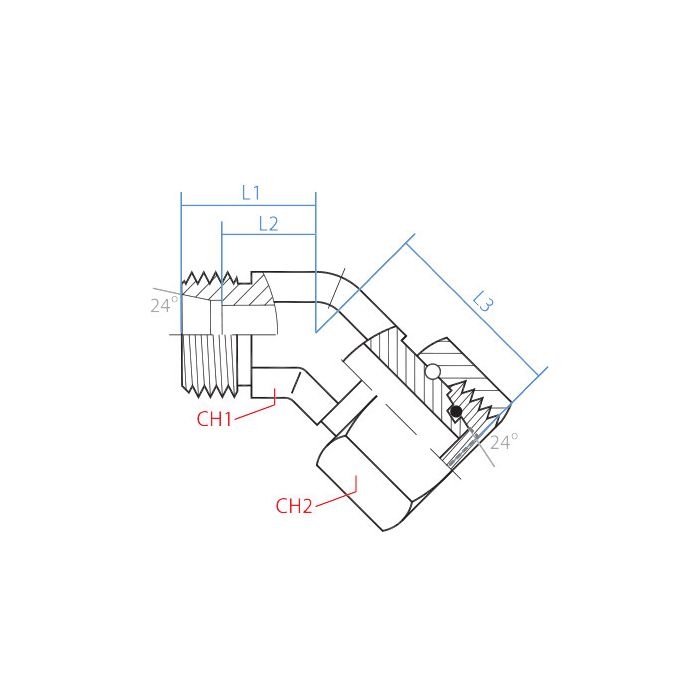

CH1 Width 22mm	CH2 Width 27mm	L1 Length 24mm	L2 Length 17mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-15	Product Weight 0.32 lbs

Product Questions & Answers 2

Product Questions & Answers

Both sides on this thing are M22 x 1.5 DIN tube, right? Just want to make sure before I go trying to hook it up to existing lines.

Question by: Floyd T on Dec 19, 2025, 2:34 PM

Correct on both counts. Side one is a male M22 x 1.5 DIN tube connection and side two is female M22 x 1.5 DIN tube, both sized at L15. So as long as your existing lines are running L15 DIN tube fittings at that thread spec, you're looking at a straight swap with no adapter games to play.

Answer by: Customer Support on Dec 21, 2025, 6:28 AM

What kind of steel is this made from? I need something that'll hold up.

Question by: Cindy K on Mar 11, 2026, 11:55 AM

Crafted from durable steel, this swivel is designed for robust performance in hydraulic systems, so it should definitely hold up.

Answer by: Customer Support on Mar 13, 2026, 7:51 AM
