45* Din X F Din Swivel

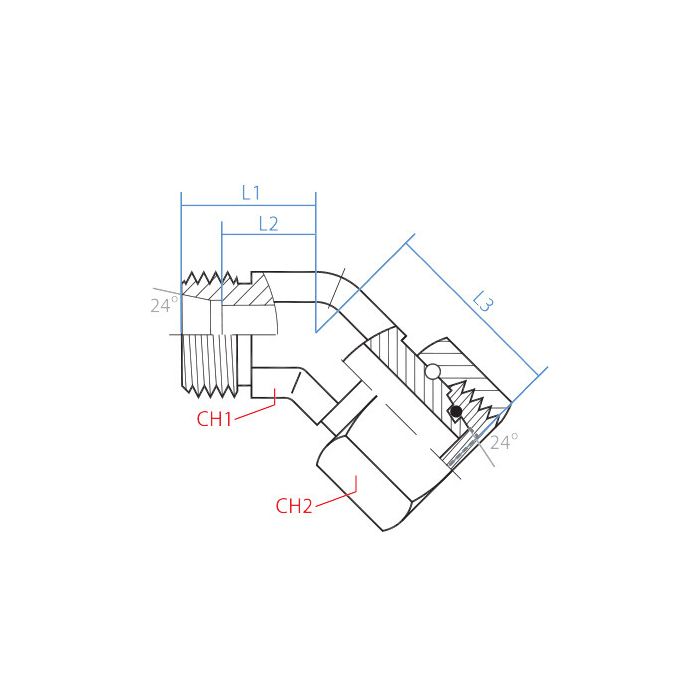

CH1 Width 19mm	CH2 Width 22mm	L1 Length 21mm	L2 Length 14mm	L3 Length 29.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-12	Product Weight 0.18 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this here fitting work for connecting two M18 x 1.5 DIN tubes at a right angle?

Question by: Bobby R on Oct 8, 2025, 10:26 AM

Indeed, this 45° elbow fitting is configured to connect M18 x 1.5 male and female DIN tube ends, providing that angled orientation sometimes needed when routing hydraulic lines.

Answer by: Customer Support on Oct 10, 2025, 6:29 AM
