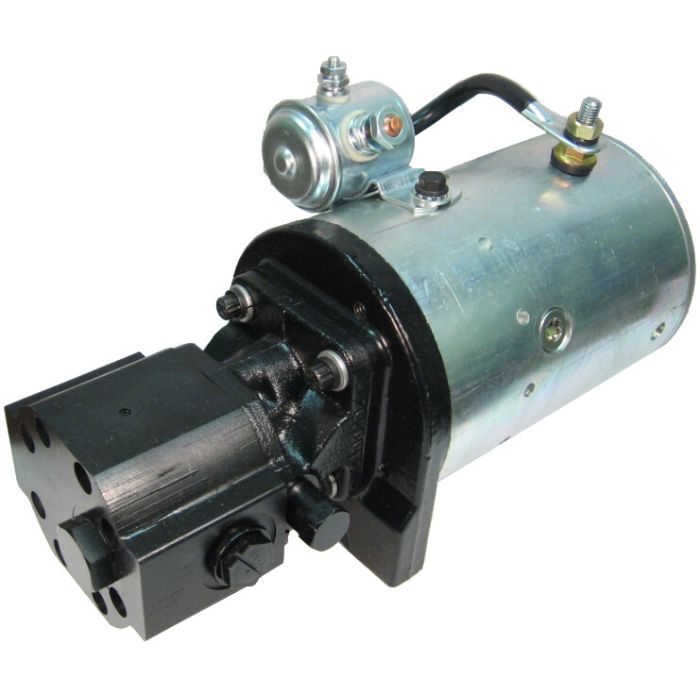

Concentric 12V Hydraulic Motor & Pump Assembly

Current At 500 PSI: 100A, At 2000 PSI, 160A	Brand Concentric Rockford Inc	Brand Concentric Rockford	Pack Size 1.00	UOM EA	Motor 12VDC Single Terminal Std Duty	Motor Start Switch Case (Internal) Grounded	Rated Flow at 2000 PSI 1	Rated Flow at 500 PSI 2.10	Relief Setting 2000	Supplier Part Number 1300382	Alternate Part Numbers Alternate Part Number C1AK26, Alternate Part Number MI-02941190, Alternate Part Number MINO-04180X89226	Product Weight 26.26 lbs

Product Questions & Answers 3

Product Questions & Answers

How much flow can I expect from this motor and pump at 1000 PSI?

Question by: Jimmy M on May 17, 2025, 8:02 AM

At 1000 PSI, this motor and pump assembly delivers approximately 1.55 gallons per minute. This performance is part of its standard duty operation, ensuring reliable flow within its specified pressure range.

Answer by: Customer Support on May 18, 2025, 6:39 PM

What kind of flow rate can I expect from this pump at different pressures?

Question by: Clint M on Sep 15, 2025, 8:33 AM

Flow rate varies with system pressure on this unit. At 500 PSI you'll get 2.10 GPM, but as pressure increases the flow drops off. At maximum 2000 PSI it puts out 1.00 GPM. Most applications fall somewhere between those two points depending on your hydraulic load.

Answer by: Customer Support on Sep 17, 2025, 6:26 AM

reckon this pump's flow changes with pressure? like from low to high end

Question by: Rick H on Apr 23, 2025, 7:31 AM

It puts out 2.10 gallons per minute when you're at 500 PSI, but that drops down to 1.00 GPM once you hit 2000 PSI.

Answer by: Customer Support on Apr 25, 2025, 6:54 AM

Similar Products

Part Number	Motor	Motor Start Switch	Rated Flow at 500 PSI	Rated Flow at 2000 PSI	Current	Relief Setting	Features	Price	Buy Now
1300382	12VDC Single Terminal Std Duty	Case (Internal) Grounded	2.1	1	At 500 PSI: 100A, At 2000 PSI, 160A	2000

FAQs

What Is the Current Draw of the Motor at Different Pressure Levels?

At 500 PSI, the motor draws 100 amps. At 2000 PSI, it draws 160 amps.

What Type of Motor Is Used in This Assembly?

The assembly includes a 12VDC single terminal standard duty motor.

Does This Unit Include a Solenoid Valve?

It includes a cavity for an optional solenoid release valve, but the valve itself is not included.

What Are the Inlet and Outlet Port Sizes?

The inlet port is 3/4-16 and the outlet port is 9/16-18, both using straight thread O-ring connections.

What Is the Relief Valve Pressure Rating?

The integrated relief valve is set to 2000 PSI.
