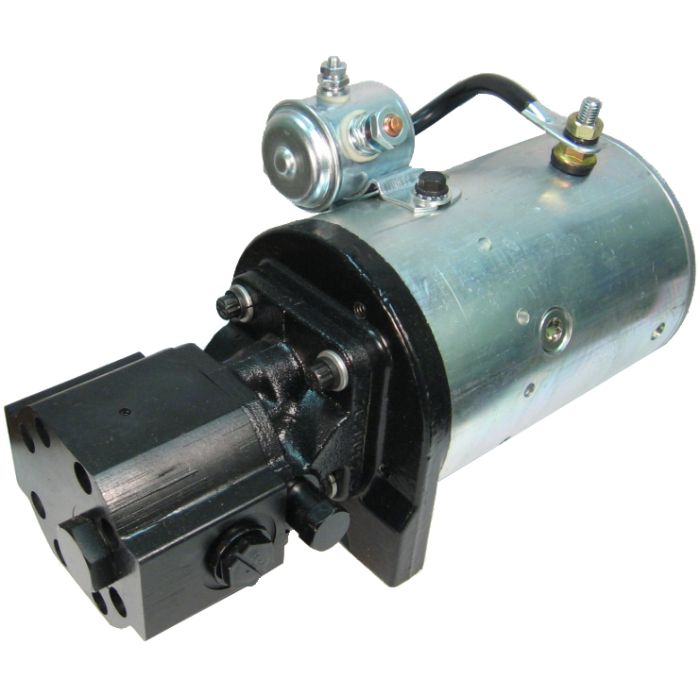

12VDC Motor & Pump Assemblies
Application |
Tailgate Lifts • Lift Trucks • Farm Implements • Portable Towers • Truck Power Gates • Telescopic Ladders • Personnel Lifts • Small Dump Trucks |
Contains |
Haldex Barnes GC Series gear pump. Cast iron construction. Contains check valve, relief valve and cavity (SAE plug) for optional solenoid release valve. |
Motor |
12 Volt Series Wound DC motor close coupled to the pump with Oldham coupling to eliminate mis-alignment. |
Ports |
Straight Thread O-Ring. 3/4-16 Inlet. 9/16-18 Outlet. |
Start Switch |
Weather resistant solenoid switch. |
Products
| Part Number | Motor | Motor Start Switch | Rated Flow at 500 PSI | Rated Flow at 2000 PSI | Current | Relief Setting | Features | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| 1300382 | 12VDC Single Terminal Std Duty | Case (Internal) Grounded | 2.1 | 1 | At 500 PSI: 100A, At 2000 PSI, 160A | 2000 |
|
