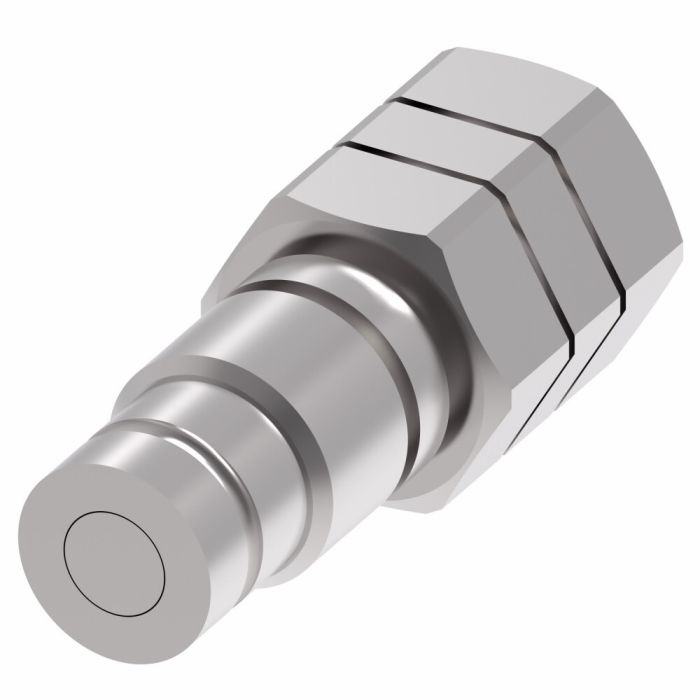

DANFOSS / EATON #12 FF PLUG X #8 FBOSS 12FFP75UN

Specifications

Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size	Certifications ISO 16028	Compliances REACH\|RoHS Compliant\|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 2 0.75	End Type 1 Push to Connect	End Type 2 SAE	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 20.3 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Flat Face	Item Type Male Half	Language English	Minimum Working Temperature -13	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1.56	Safety locking Mechanism Sleeve lock	Seal Material NBR+AU	Sub Brand Hansen	Supplier Part Number 12FFP75UN	Torque Rating 43.8 lb/ft	Torque Rating 43.8 lb/ft	Valve Type 2 way	Product Weight 0.65 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this plug work for hydraulic fluid transfer on my farm equipment?

Question by: Donna B on Mar 23, 2026, 7:17 AM

This coupling plug is definitely suitable for hydraulic and fluid transfer applications, including agricultural equipment. It's also good for construction equipment, on-highway vehicles, and stationary in-plant hydraulics, so it's a versatile piece of equipment.

Answer by: Customer Support on Mar 24, 2026, 7:31 PM

got a flat-face setup on a skid steer. is this plug the kind that swaps with the 3/8 HTMA couplers?

Question by: Kent F on Jun 8, 2025, 9:33 PM

For 3/8 size HTMA interchange, this plug is called out as interchangeable with HTMA couplings in that size, and it is a flat-face (FF series) male half with a push-to-connect end.

Answer by: Customer Support on Jun 10, 2025, 12:00 PM

Got a piece of equipment running HTMA couplings in the 3/8 size, will this plug swap right in without having to modify anything?

Question by: Danny M on May 25, 2025, 7:40 AM

For 3/8 size HTMA couplings, yes, this plug is interchangeable. The FF Series is specifically listed as compatible with HTMA in that size, so you can swap it in without reworking the connection. The flat face internal connection type and push-to-connect end keep things straightforward on the installation side.

Answer by: Customer Support on May 26, 2025, 8:08 AM
