F Din X M Din Reducer

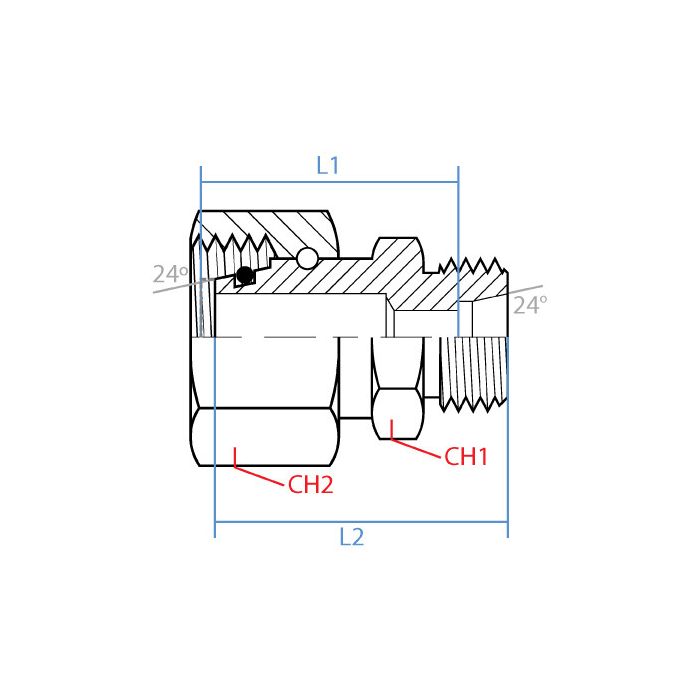

CH1 Width 50mm	CH2 Width 60mm	L1 Length 43mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender F	Side 1 Size L42	Side 1 Type Din Tube	Side 2 Callout M45 X 2.0	Side 2 Gender M	Side 2 Size L35	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-42-35	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

got a female DIN tube end with M52 x 2.0 on it, will this reducer step me down to the M45 x 2.0 male side?

Question by: Rhonda F on Oct 17, 2025, 8:03 PM

It adapts a female DIN tube end M52 x 2.0 (L42) over to a male DIN tube end M45 x 2.0 (L35), so it is meant for that exact step-down.

Answer by: Customer Support on Oct 19, 2025, 11:25 AM

Will this reducer hold up to high pressure hydraulic systems, or is it more for low-pressure stuff?

Question by: Danny F on Nov 27, 2025, 6:56 AM

This Adaptall reducer is made from durable steel, so it should be suitable for many hydraulic applications, but specific pressure ratings aren't listed here.

Answer by: Customer Support on Nov 29, 2025, 6:39 AM
