F Din X M Din Reducer

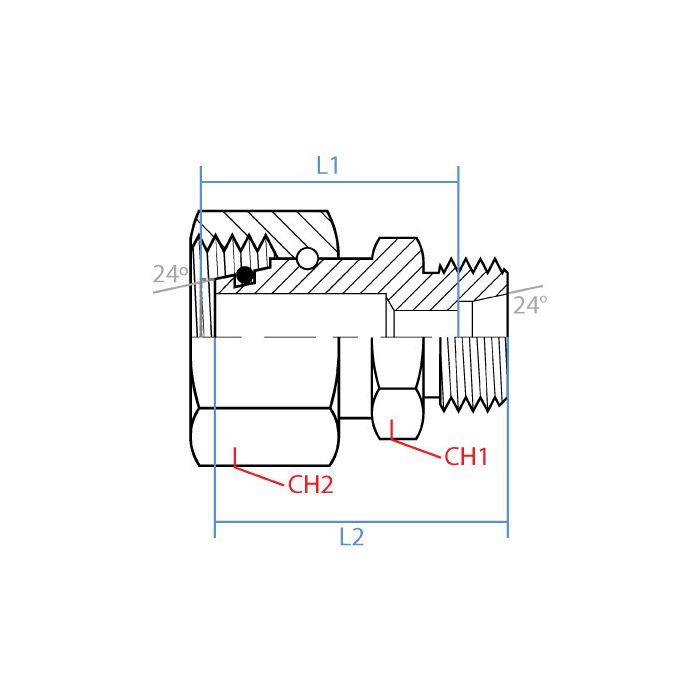

CH1 Width 17mm	CH2 Width 22mm	L1 Length 25mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5315L-12-08	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

got a female M18 x 1.5 DIN tube end on one line and need to step down to M14 x 1.5 male. is that what this reducer does?

Question by: Steve M on Jun 25, 2025, 7:32 PM

For tying two different DIN tube thread sizes together, this reducer goes from an M18 x 1.5 female DIN tube connection on Side 1 to an M14 x 1.5 male DIN tube connection on Side 2.

Answer by: Customer Support on Jun 27, 2025, 9:16 AM

Will this here reducer work to connect somethin' with an M18 x 1.5 female DIN tube to somethin' with an M14 x 1.5 male DIN tube?

Question by: Dean B on Sep 8, 2025, 8:40 PM

This Adaptall reducer's designed specifically for connecting a hydraulic system with an M18 x 1.5 female DIN tube to one with an M14 x 1.5 male DIN tube.

Answer by: Customer Support on Sep 10, 2025, 8:13 AM
