F Din X Male Npt

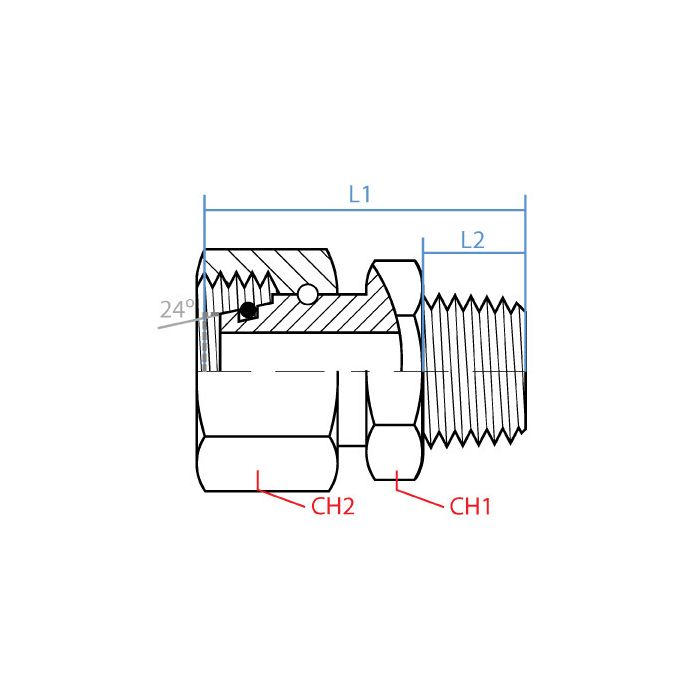

CH1 Width 30mm	CH2 Width 36mm	L1 Length 58mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307S-20-12	Product Weight 0.56 lbs

Product Questions & Answers 1

Product Questions & Answers

got a female DIN tube end M30 x 2.0 (S20) on my line and the port i need to hit is 3/4-14 NPTF. is this the right adapter?

Question by: Jean O on May 18, 2025, 8:35 AM

It mates a female DIN tube end M30 x 2.0 (S20) on one side to a 3/4 inch male NPT fitting with 3/4-14 NPTF threads on the other, so it is meant for exactly that DIN-to-NPT connection.

Answer by: Customer Support on May 19, 2025, 7:58 PM
