Adaptall F Din X Male Npt 5307S-12-06

Specifications

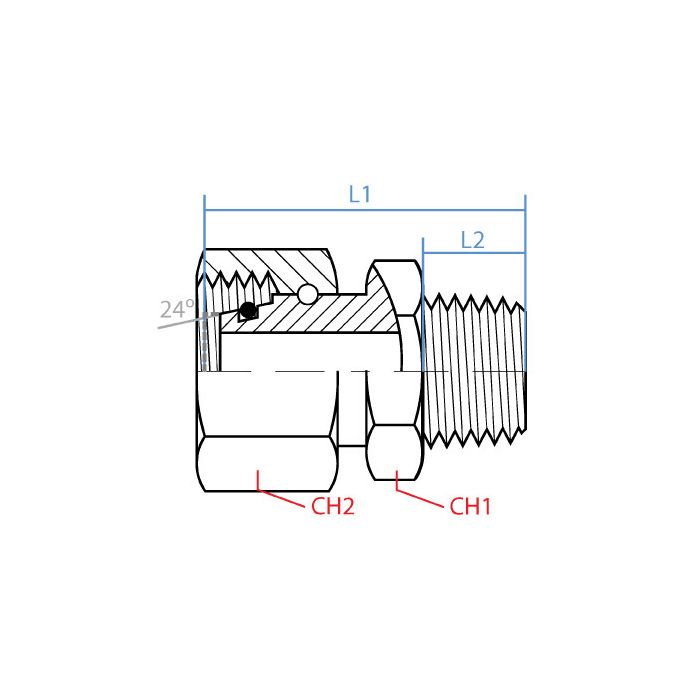

CH1 Width 19mm	CH2 Width 24mm	L1 Length 45.5mm	L2 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307S-12-06	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work for connecting a DIN tube to a NPT pipe?

Question by: Norm K on Jun 2, 2025, 11:17 AM

Yes, this Adaptall fitting is designed to adapt a female DIN tube with M20 X 1.5 threads to a male NPT end with 3/8 - 18 NPTF threads.

Answer by: Customer Support on Jun 4, 2025, 6:31 AM

Got a DIN tube fitting on a hydraulic line and need to tie it into some NPT hydraulic connections on the other end. This the right adapter for that kind of crossover?

Question by: Warren P on Jul 15, 2025, 5:15 PM

Straight connection between a female DIN tube port and a male NPT end is exactly what this fitting handles. Side 1 is a female DIN tube with M20 x 1.5 threads, and Side 2 is a male 3/8-18 NPTF. So if your DIN side is an S12 and your NPT port is 3/8 inch, you got a match. Steel construction throughout, and the straight profile keeps things clean without any offset.

Answer by: Customer Support on Jul 17, 2025, 6:22 AM

trying to hook a female DIN tube end to a 3/8 NPT port. is this the right adapter?

Question by: Scott M on Jun 4, 2025, 4:34 PM

Built for exactly that connection, it adapts a female DIN tube end with M20 x 1.5 threads on one side to a male 3/8 - 18 NPTF end on the other.

Answer by: Customer Support on Jun 5, 2025, 9:04 PM
