Din X Male Npt

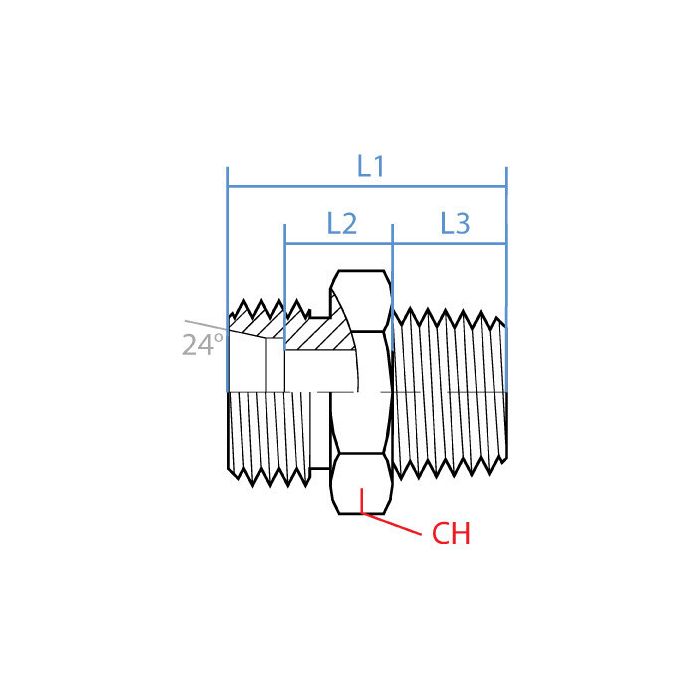

CH Width 19mm	L1 Length 35mm	L2 Length 12.5mm	L3 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007S-10-06	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s M18 x 1.5 DIN, will this adapter let me hook it up to a 3/8-18 NPTF port?

Question by: Kent J on Aug 1, 2025, 2:02 PM

Yes, it is a straight steel adapter with a male DIN tube connection on one side (M18 x 1.5, S10) and a male 3/8 inch 18 NPTF thread on the other, so it bridges those two thread types.

Answer by: Customer Support on Aug 3, 2025, 1:44 PM
