F Din X Male Npt

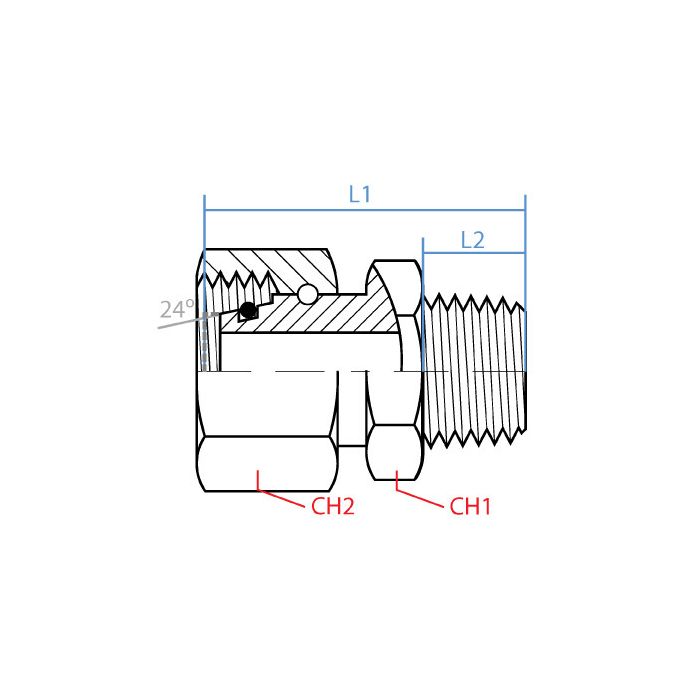

CH1 Width 36mm	CH2 Width 46mm	L1 Length 57.5mm	L2 Length 25mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender F	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout 1 - 11.5 NPTF	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-28-16	Product Weight 0.68 lbs

Product Questions & Answers 2

Product Questions & Answers

I need somethin' to hook up a DIN fitting to a NPT, is this the right piece?

Question by: Carl C on Jul 2, 2025, 4:28 PM

This adapter will certainly do the trick. It's got a female DIN tube connection on one side (M36 x 2.0) and a male NPT on the other (1 - 11.5 NPTF), so it's made for exactly that.

Answer by: Customer Support on Jul 3, 2025, 6:28 PM

trying to hook a female DIN tube end up to a 1 inch NPT port. is this the right adapter?

Question by: Peggy W on Oct 23, 2025, 2:13 PM

For that kind of hookup, it matches a Female DIN Tube connection on one side and a Male NPTF thread on the other. The DIN side is M36 x 2.0 (L28) and the NPT side is 1 - 11.5 NPTF (1 inch).

Answer by: Customer Support on Oct 24, 2025, 4:33 PM
