F Din X Mbspp Es Seal

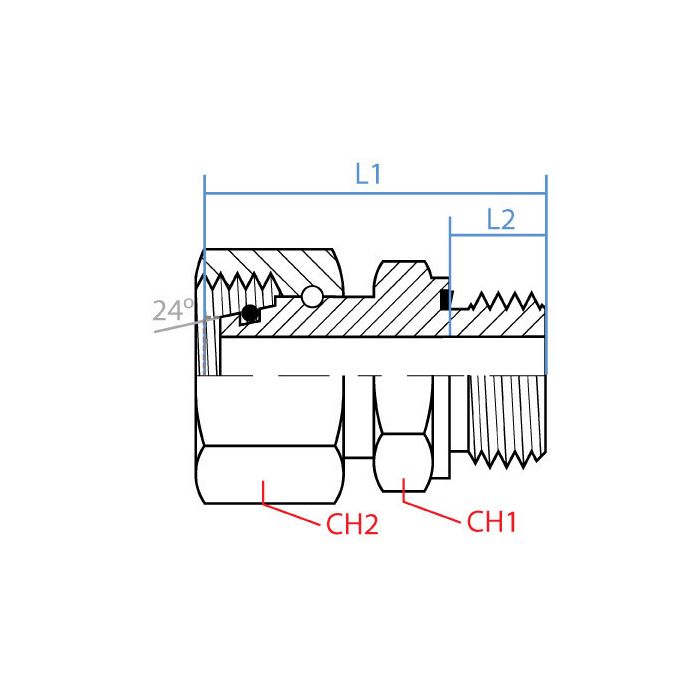

CH1 Width 27mm	CH2 Width 27mm	L1 Length 50.5mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-14-08	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s female DIN M22 x 1.5, will this adapter mate up to a G 1/2 - 14 male BSPP on the other side?

Question by: Rhonda R on Sep 12, 2025, 3:40 PM

On the DIN side, you are looking at a female DIN tube end with M22 x 1.5 threads (size S14). The other end is a male BSPP with G 1/2 - 14 threads and an ES seal, so it is meant to connect those two thread types in a straight adapter.

Answer by: Customer Support on Sep 13, 2025, 4:57 PM

Will this fitting work for connecting a DIN tube to a BSPP fitting?

Question by: Diane C on Dec 7, 2025, 8:53 PM

Yes, this straight adapter fitting is designed to connect a female DIN tube end with M22 x 1.5 threads to a male BSPP end with G 1/2 - 14 threads.

Answer by: Customer Support on Dec 9, 2025, 8:46 PM
