Adaptall Female Din Soft Seal Union 5300S-25

Specifications

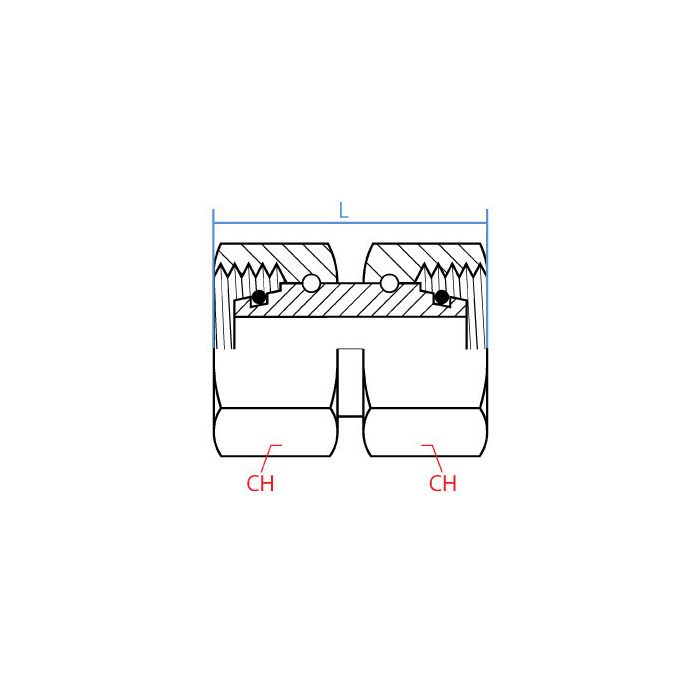

CH1 Width 46mm	CH2 Width 36mm	L Length 65.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender F	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-25	Product Weight 1.32 lbs

Product Questions & Answers 3

Product Questions & Answers

got two DIN tube ends that are both M36 x 2.0, will this union join em together straight?

Question by: Keith M on Dec 16, 2025, 10:20 AM

Built for joining two DIN tube connections in a straight run, it has female ports on both sides with M36 x 2.0 threads in size S25.

Answer by: Customer Support on Dec 18, 2025, 6:29 AM

What kind of hydraulic fluid would be best in this fitting?

Question by: Brenda C on Sep 25, 2025, 10:39 AM

This fitting doesn't have any specific fluid requirements mentioned, but it's made of steel, so be sure to use a fluid compatible with that material to prevent corrosion.

Answer by: Customer Support on Sep 26, 2025, 12:57 PM

Both ports on this union show M36 x 2.0 and S25 sizing, does that mean it only works as a straight through connection between two DIN tube lines of the same size?

Question by: Stan L on Sep 19, 2025, 8:40 PM

Correct. Both sides are identical, M36 x 2.0 thread with an S25 sizing, so you're looking at a union that joins two same-size DIN tube connections in a straight line. No reducing, no angling. If your application needs two matching DIN soft seal tube ends brought together, this fits that role exactly. The straight configuration and matching callouts on both ports confirm it's built for that one specific job.

Answer by: Customer Support on Sep 21, 2025, 8:05 AM
