Female Din Soft Seal Union

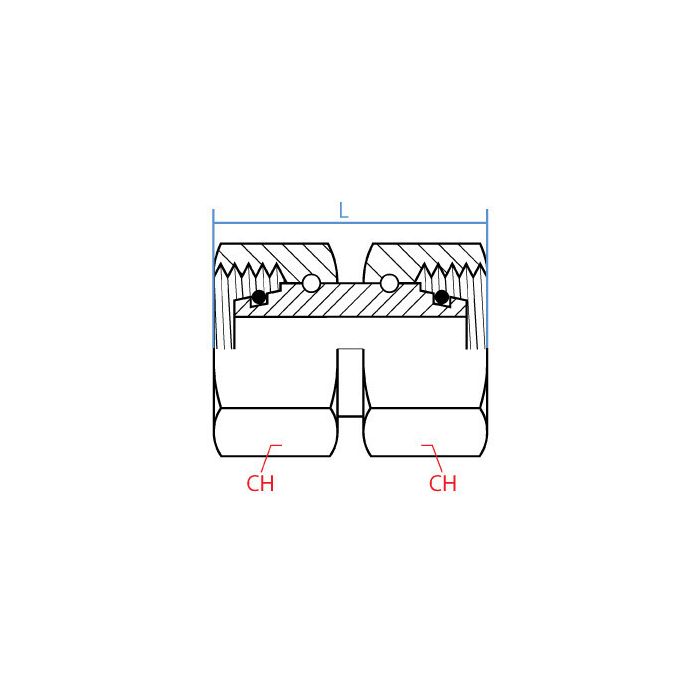

CH1 Width 36mm	CH2 Width 27mm	L Length 62.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size S20	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-20	Product Weight 0.74 lbs

Product Questions & Answers 1

Product Questions & Answers

Both sides on this union are M30 X 2.0 female DIN tube connections, right? Just want to make sure before I go ordering a bunch of them for a retrofit job.

Question by: Brett C on Oct 20, 2025, 2:20 PM

Both sides are identical, M30 X 2.0 female DIN tube on each end, size S20. So if your system runs DIN tube fittings at that thread spec on both connection points, this union ties them together without any adapter in between. Steel construction holds up well in industrial retrofit work where things get a little rough.

Answer by: Customer Support on Oct 22, 2025, 6:58 AM
