Adaptall Din Union Tee 5080S-20

Specifications

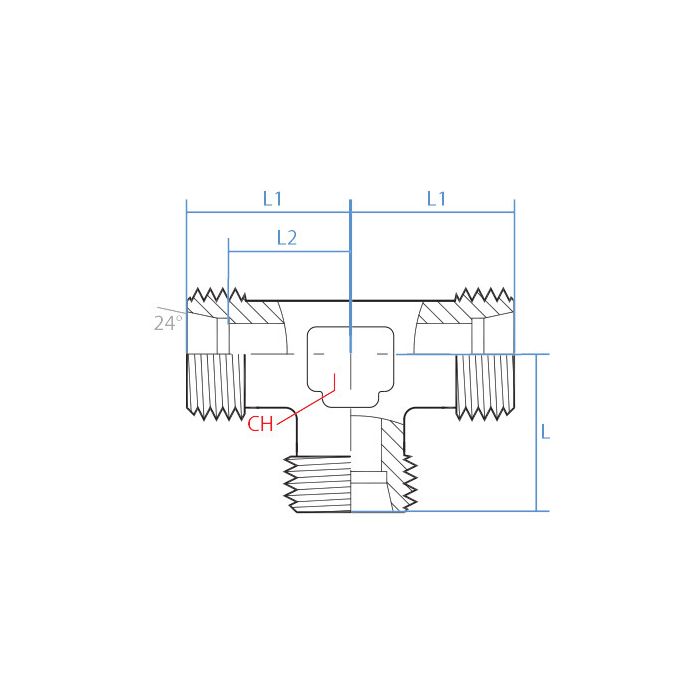

CH Width 27mm	L1 Length 37mm	L2 Length 26.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender M	Side 3 Size S20	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-20	Product Weight 0.70 lbs

Product Questions & Answers 3

Product Questions & Answers

All three ports on this tee are M30 x 2.0 male DIN tube connections, right? Just want to make sure before I order a handful of these for a branching setup we got going.

Question by: Ronnie W on Jun 11, 2025, 7:43 AM

Every port on the 5080S-20 runs M30 x 2.0 male DIN tube, all three of them. So whatever female DIN fittings you're mating to on each leg, they'll all need to match that same thread spec. Good fit for a branching line where you need consistent connections across the board.

Answer by: Customer Support on Jun 12, 2025, 2:04 PM

got a line that needs to split in two, is this tee the kind with all three ends the same size

Question by: Neil O on Mar 2, 2026, 2:29 PM

For branching one hydraulic line into two, this union tee gives you three matching male DIN tube connections, all M30 x 2.0 (size S20), so each port is the same thread and connection type.

Answer by: Customer Support on Mar 4, 2026, 6:06 AM

Will this tee work with standard hydraulic lines, or do I need special DIN fittings?

Question by: Jerry L on Aug 29, 2025, 10:42 AM

This union tee is designed with three M30 x 2.0 male DIN tube connections, so it requires mating DIN fittings to ensure a secure, leak-resistant seal.

Answer by: Customer Support on Aug 31, 2025, 6:22 AM
