Adaptall Din X Male Npt 5007S-10-04

Specifications

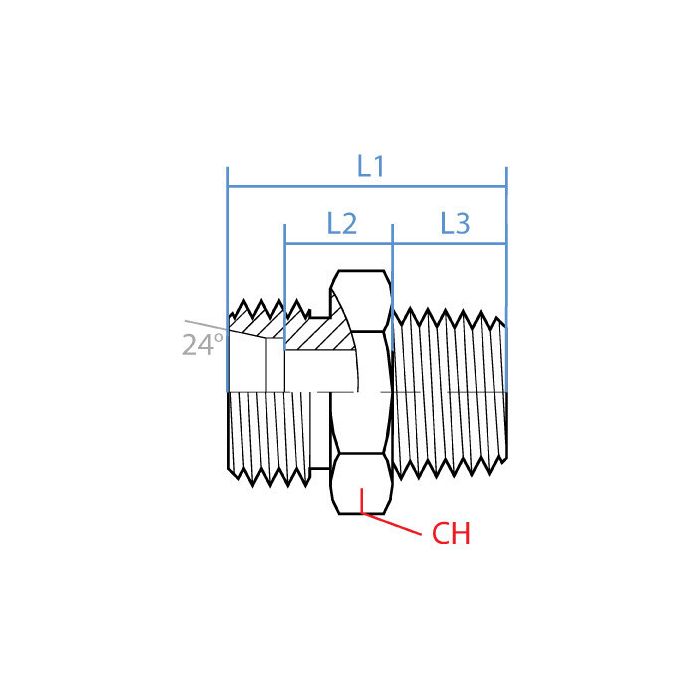

CH Width 19mm	L1 Length 35mm	L2 Length 12.5mm	L3 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007S-10-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment running DIN metric fittings on one end and NPT ports on the other, does this adapter go straight between the two without needing any extra hardware?

Question by: Chad T on Sep 7, 2025, 6:17 AM

That's what it's built for. One side is an M18 x 1.5 DIN tube end (Size S10) and the other is a 1/4-18 NPTF male thread, all in one straight steel body. No extra pieces, no unions, no reducers. Just threads into your NPT port and accepts the DIN tube fitting on the other end. Keeps things clean and straightforward when you're bridging those two standards in line.

Answer by: Customer Support on Sep 8, 2025, 8:22 AM

Will this here fitting hold up alright in a hydraulic setup on my tractor, or is it more for shop air and such?

Question by: Dustin J on Dec 31, 2025, 10:53 AM

Made from steel, this adapter is well-suited for hydraulic applications like those found on mobile equipment.

Answer by: Customer Support on Jan 2, 2026, 6:57 AM
