90* Din X Male Npt

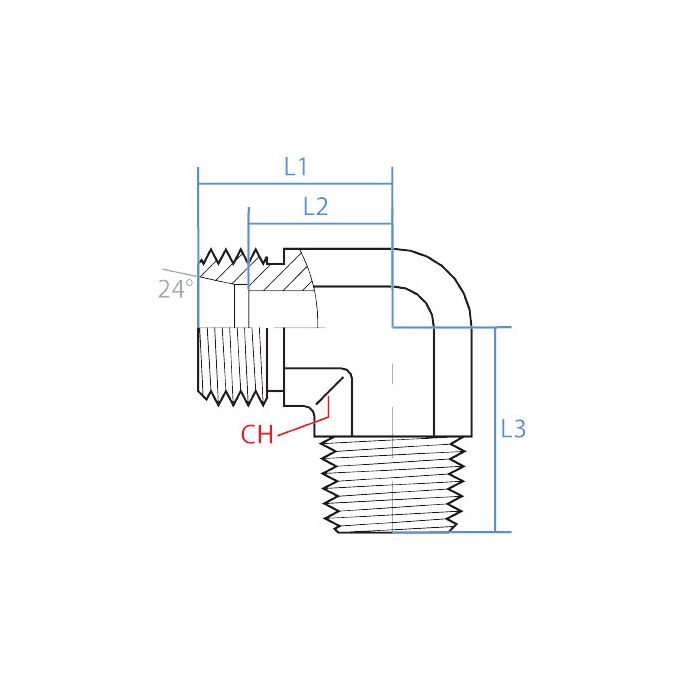

CH Width 19mm	L1 Length 30mm	L2 Length 22mm	L3 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070S-14-08	Product Weight 0.22 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got an M22 x 1.5 on the DIN side and my port is 1/2" NPT male, this the right one to bridge those two?

Question by: Rod P on Apr 27, 2025, 8:02 AM

That's what this fitting does. One end is M22 x 1.5 DIN tube, Size S14, and the other is a 1/2-14 NPTF male thread. The elbow shape handles the direction change at the same time, so you're not stacking a separate adapter onto a straight fitting just to make the angle work.

Answer by: Customer Support on Apr 28, 2025, 2:43 PM
