90* Din X Male Npt

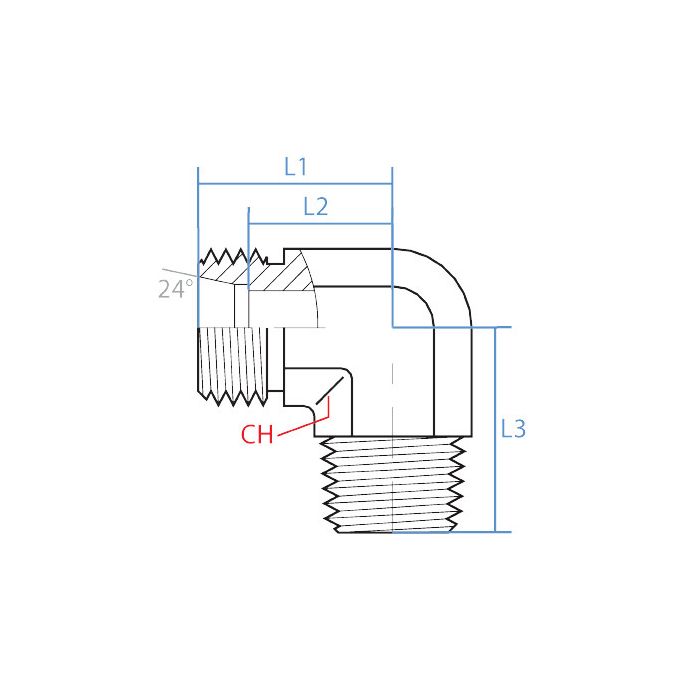

CH Width 14mm	L1 Length 24mm	L2 Length 17mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070S-08-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

got a DIN tube line running M16 x 1.5 that needs to tie into a 1/4" NPT port at a right angle, this the right piece for that?

Question by: Norm A on Nov 25, 2025, 10:04 AM

That's what this adapter is built for. One end is M16 x 1.5 male DIN tube, the other is 1/4-18 NPTF male thread, and the 90 degree elbow puts those two connections at a right angle to each other. Steel construction, so it holds up in working hydraulic environments. SKU is 5070S-08-04 if you're double-checking against a parts list.

Answer by: Customer Support on Nov 26, 2025, 6:52 PM
