100-200 Series Pipe & Tubing Support Clamps
Products

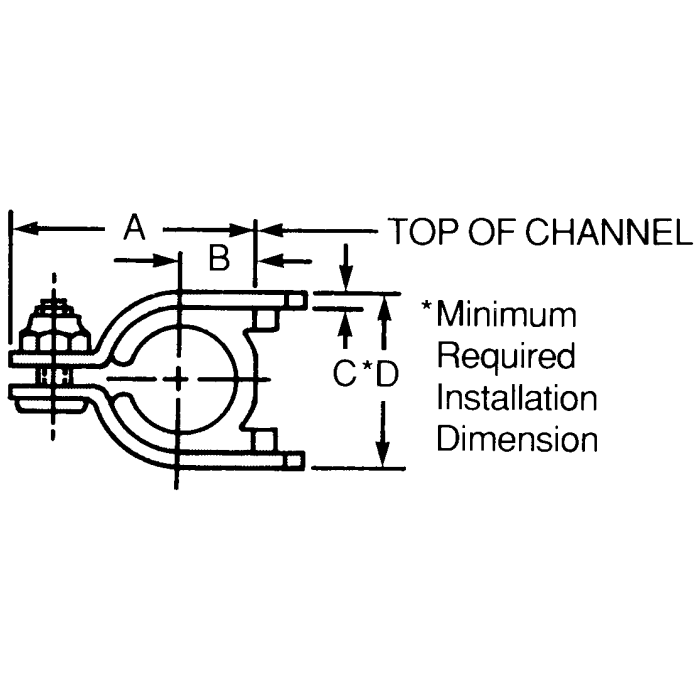

| Model Number | Size | Materials | A | B | C | D | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 100025 | 1/4 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.11 | 0.22 | 0.075 | 0.62 |
|
|
| 100025-4-656 | 1/4 inch Tubing | Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud | 1.11 | 0.22 | 0.075 | 0.62 |
|
|
| 100031 | 5/16 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.24 | 0.28 | 0.075 | 0.75 |
|
|
| 100037 | 3/8 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.24 | 0.28 | 0.075 | 0.75 |
|
|
| 100037-4-656 | 3/8 inch Tubing | Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud | 1.24 | 0.28 | 0.075 | 0.75 |
|
|
| 100050 | 1/2 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.36 | 0.34 | 0.075 | 0.87 |
|
|
| 100062 | 5/8 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.5 | 0.41 | 0.075 | 1 |
|
|
| 100075 | 3/4 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.78 | 0.53 | 0.075 | 1.33 |
|
|
| 100075-4-656 | 3/4 inch Tubing | Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud | 1.78 | 0.53 | 0.075 | 1.33 |
|
|
| 100087 | 7/8 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 1.91 | 0.58 | 0.075 | 1.45 |
|
|
| 100100 | 1 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 2.03 | 0.66 | 0.105 | 1.66 |
|
|
| 100112 | 1-1/8 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 2.16 | 0.72 | 0.105 | 1.79 |
|
|
| 100125 | 1-1/4 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 2.3 | 0.78 | 0.105 | 1.92 |
|
|
| 100125-4-656 | 1-1/4 inch Tubing | Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud | 2.3 | 0.78 | 0.105 | 1.92 |
|
|
| 100150 | 1-1/2 inch Tubing | Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud | 2.75 | 0.91 | 0.119 | 2.22 |
|
