main product photo

100-200 Series Pipe & Tubing Support Clamp, 1-1/2 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Ask A Question

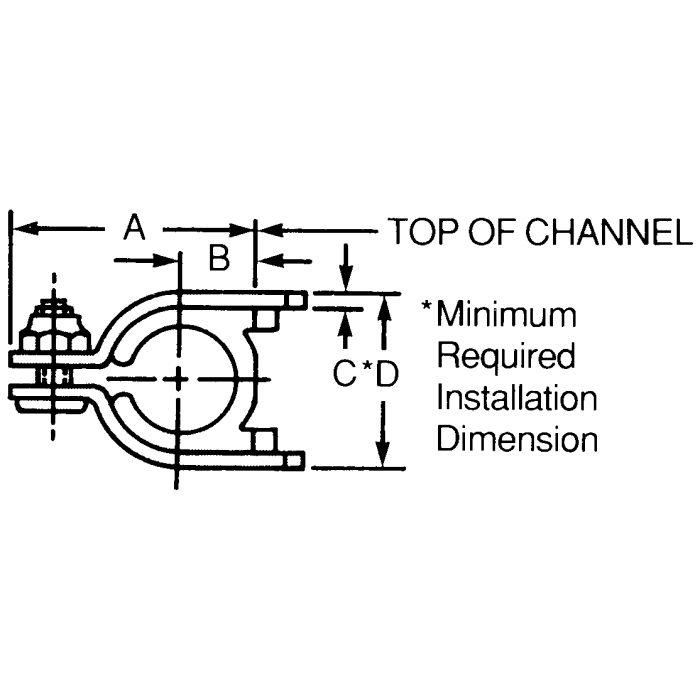

A
2.75
B
0.91
C
0.12
D
2.22
Brand
ZSI
Brand
ZSI
Pack Size
1.00
UOM
EA
Materials
Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
Size
1-1/2 inch Tubing
Supplier Part Number
100150
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 237-6060-150, Alternate Part Number C1AG20, Alternate Part Number MI-01511358, Alternate Part Number MINO-01771X10328
Product Weight
0.50 lbs
Product Questions & Answers 1

Product Questions & Answers

what all materials is this clamp available in if zinc plated steel ain't what I need for my setup?
Question by: Denise B on Feb 17, 2026, 2:26 PM
Quite a few options depending on your environment. Beyond zinc plated steel, these clamps come in galvanized steel, 304 stainless, 316 stainless, and aluminum. So if you're running somewhere with more moisture or chemical exposure, you've got room to step up to a stainless grade without having to source a completely different product line.
Answer by: Customer Support on Feb 18, 2026, 3:11 PM

Similar Products

Model Number Size Materials A B C D Price Buy Now
100025 1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.11 0.22 0.075 0.62
100025-4-656 1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.11 0.22 0.075 0.62
100031 5/16 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037 3/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037-4-656 3/8 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.24 0.28 0.075 0.75
100050 1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.36 0.34 0.075 0.87
100062 5/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.5 0.41 0.075 1
100075 3/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.78 0.53 0.075 1.33
100075-4-656 3/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.78 0.53 0.075 1.33
100087 7/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.91 0.58 0.075 1.45
100100 1 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.03 0.66 0.105 1.66
100112 1-1/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.16 0.72 0.105 1.79
100125 1-1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.3 0.78 0.105 1.92
100125-4-656 1-1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 2.3 0.78 0.105 1.92
100150 1-1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.75 0.91 0.119 2.22
