main product photo

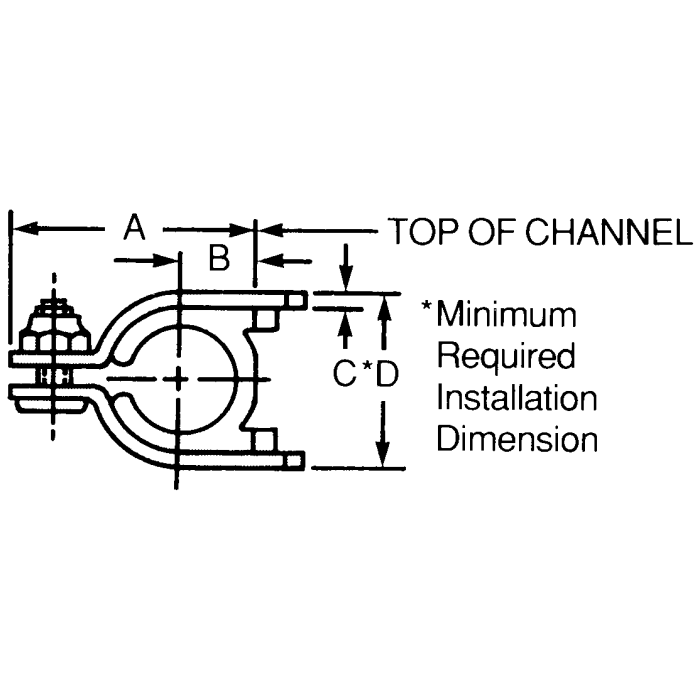

100-200 Series Pipe & Tubing Support Clamp, 1-1/4 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Ask A Question
A
2.30
B
0.78
C
0.11
D
1.92
Brand
ZSI
Brand
ZSI
Pack Size
1.00
UOM
EA
Materials
Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
Size
1-1/4 inch Tubing
Supplier Part Number
100125
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 237-6060-125, Alternate Part Number C1AG19, Alternate Part Number MI-01168623, Alternate Part Number MINO-01771X53006
Product Weight
0.50 lbs
Product Questions & Answers 2

Product Questions & Answers

what's the temp range on the cushion for this clamp? got some lines running near heat sources and need to know if it'll hold up
Question by: Hank G on Mar 29, 2025, 5:47 PM
The cushion on this clamp is rated from -65°F up to 275°F. For most industrial heat exposure situations that aren't involving direct flame or extreme process heat, that range covers a pretty wide variety of conditions without issue.
Answer by: Customer Support on Mar 31, 2025, 8:05 AM
What size tubing is this clamp made for? Just want to make sure it'll fit what I'm workin' on.
Question by: Cindy P on Nov 12, 2025, 7:43 PM
This support clamp is designed specifically for 1-1/4 inch tubing, so it should be a good fit for your project if that's the size you're using.
Answer by: Customer Support on Nov 13, 2025, 8:55 PM

Similar Products

Model Number Size Materials A B C D Price Buy Now
100025 1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.11 0.22 0.075 0.62
100025-4-656 1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.11 0.22 0.075 0.62
100031 5/16 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037 3/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037-4-656 3/8 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.24 0.28 0.075 0.75
100050 1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.36 0.34 0.075 0.87
100062 5/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.5 0.41 0.075 1
100075 3/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.78 0.53 0.075 1.33
100075-4-656 3/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.78 0.53 0.075 1.33
100087 7/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.91 0.58 0.075 1.45
100100 1 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.03 0.66 0.105 1.66
100112 1-1/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.16 0.72 0.105 1.79
100125 1-1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.3 0.78 0.105 1.92
100125-4-656 1-1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 2.3 0.78 0.105 1.92
100150 1-1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.75 0.91 0.119 2.22
