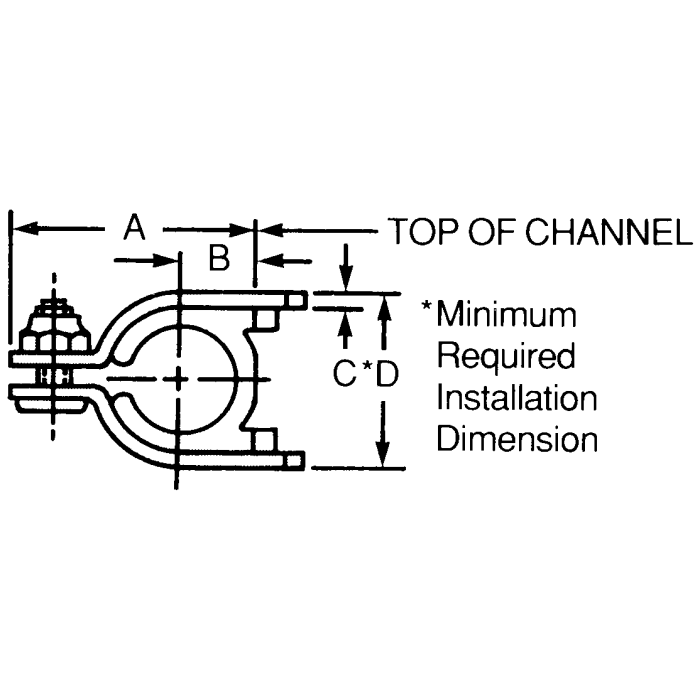

main product photo

100-200 Series Pipe & Tubing Support Clamp, 1 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Ask A Question
A
2.03
B
0.66
C
0.11
D
1.66
Brand
ZSI
Brand
ZSI
Pack Size
1.00
UOM
EA
Materials
Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
Size
1 inch Tubing
Supplier Part Number
100100
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AG18, Alternate Part Number MI-01168609, Alternate Part Number MINO-01771X53004
Product Weight
0.25 lbs
Product Questions & Answers 1

Product Questions & Answers

what's the temp range on the cushion for these clamps? got some lines runnin near a heat source and need to make sure they'll hold up
Question by: Shawn W on Feb 4, 2026, 12:21 PM
The cushion is rated from -65°F up to 275°F, so it can handle reasonably warm environments without breaking down. As long as your heat source stays within that window, you should be in good shape for keeping those lines secured.
Answer by: Customer Support on Feb 6, 2026, 6:49 AM

Similar Products

Model Number Size Materials A B C D Price Buy Now
100025 1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.11 0.22 0.075 0.62
100025-4-656 1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.11 0.22 0.075 0.62
100031 5/16 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037 3/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037-4-656 3/8 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.24 0.28 0.075 0.75
100050 1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.36 0.34 0.075 0.87
100062 5/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.5 0.41 0.075 1
100075 3/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.78 0.53 0.075 1.33
100075-4-656 3/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.78 0.53 0.075 1.33
100087 7/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.91 0.58 0.075 1.45
100100 1 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.03 0.66 0.105 1.66
100112 1-1/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.16 0.72 0.105 1.79
100125 1-1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.3 0.78 0.105 1.92
100125-4-656 1-1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 2.3 0.78 0.105 1.92
100150 1-1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.75 0.91 0.119 2.22
