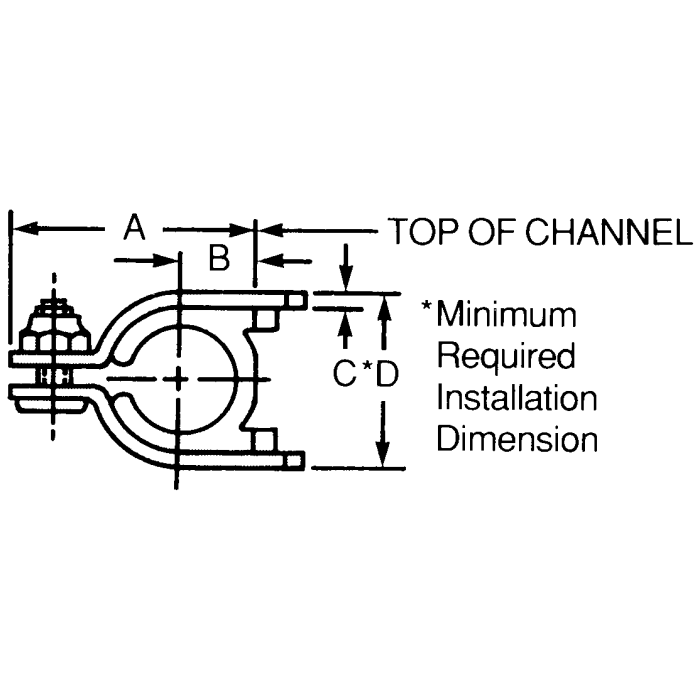

main product photo

100-200 Series Pipe & Tubing Support Clamp, 3/4 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Ask A Question
A
1.78
B
0.53
C
0.08
D
1.33
Brand
ZSI
Brand
ZSI
Pack Size
1.00
UOM
EA
Materials
Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
Size
3/4 inch Tubing
Supplier Part Number
100075
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AG16, Alternate Part Number MI-01168601, Alternate Part Number MINO-01771X53003
Product Weight
0.25 lbs
Product Questions & Answers 2

Product Questions & Answers

what kinda temp range does the cushion hold up to on these clamps? got some lines runnin through a pretty warm area of the plant
Question by: Janet C on Sep 28, 2025, 1:07 PM
The cushion on this clamp is rated from -65°F all the way up to 275°F, so it handles a solid range on both ends. For most industrial environments, including areas with elevated ambient heat, that upper limit gives you good working room before you'd have any concerns about the cushion material breaking down.
Answer by: Customer Support on Sep 30, 2025, 11:40 AM
got a 3/4 tube run to tidy up. is this clamp actually sized for 3/4 inch tubing?
Question by: Curt E on Dec 19, 2025, 7:02 AM
It is made for 3/4 inch tubing. It is a 100-200 Series support clamp assembly sized specifically for that tube size.
Answer by: Customer Support on Dec 20, 2025, 8:06 PM

Similar Products

Model Number Size Materials A B C D Price Buy Now
100025 1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.11 0.22 0.075 0.62
100025-4-656 1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.11 0.22 0.075 0.62
100031 5/16 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037 3/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037-4-656 3/8 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.24 0.28 0.075 0.75
100050 1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.36 0.34 0.075 0.87
100062 5/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.5 0.41 0.075 1
100075 3/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.78 0.53 0.075 1.33
100075-4-656 3/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.78 0.53 0.075 1.33
100087 7/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.91 0.58 0.075 1.45
100100 1 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.03 0.66 0.105 1.66
100112 1-1/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.16 0.72 0.105 1.79
100125 1-1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.3 0.78 0.105 1.92
100125-4-656 1-1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 2.3 0.78 0.105 1.92
100150 1-1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.75 0.91 0.119 2.22
