100-200 Series Pipe & Tubing Support Clamp, 5/8 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

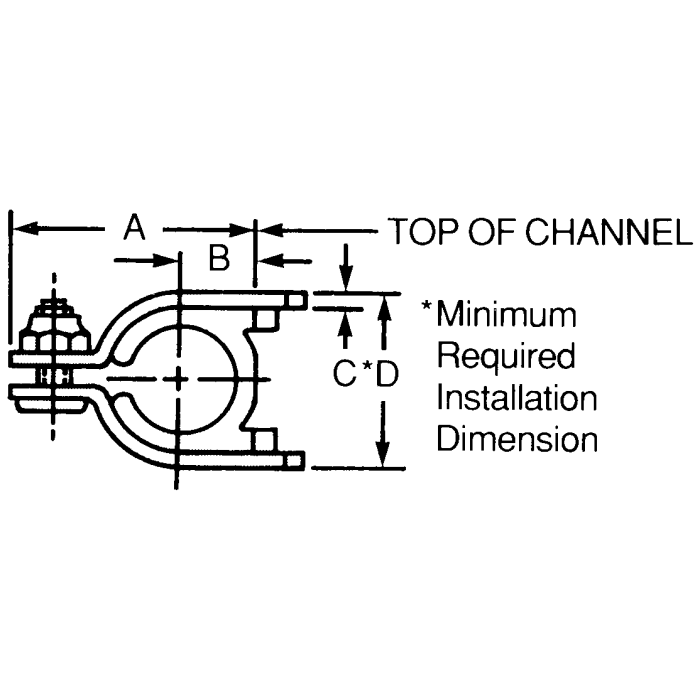

A 1.50	B 0.41	C 0.08	D 1	Brand ZSI	Brand Hydra-Zorb	Pack Size 1.00	UOM EA	Materials Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	Size 5/8 inch Tubing	Supplier Part Number 100062	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1AG13	Product Weight 0.14 lbs

Product Questions & Answers 2

Product Questions & Answers

what temp range does the cushion on this clamp hold up to? got some lines running near heat sources and want to make sure it ain't gonna fall apart on me

Question by: Jimmy C on Mar 25, 2025, 7:58 AM

The cushion is rated from -65°F up to 275°F, so it can handle a fair amount of heat without breaking down. For most industrial setups with lines running near warm equipment, that range covers you pretty well on both ends.

Answer by: Customer Support on Mar 27, 2025, 7:41 AM

Trying to clamp down 5/8 tubing, is this the right size or am i gonna be fighting it?

Question by: Troy J on Jun 22, 2025, 7:07 PM

It is made to support 5/8 inch tubing, so you are matching the clamp to that tubing size rather than forcing it to work on something else.

Answer by: Customer Support on Jun 24, 2025, 3:24 PM

Similar Products

Model Number	Size	Materials	A	B	C	D
100025	1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.11	0.22	0.075	0.62
100025-4-656	1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.11	0.22	0.075	0.62
100031	5/16 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037	3/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.24	0.28	0.075	0.75
100037-4-656	3/8 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.24	0.28	0.075	0.75
100050	1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.36	0.34	0.075	0.87
100062	5/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.5	0.41	0.075	1
100075	3/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.78	0.53	0.075	1.33
100075-4-656	3/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	1.78	0.53	0.075	1.33
100087	7/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	1.91	0.58	0.075	1.45
100100	1 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.03	0.66	0.105	1.66
100112	1-1/8 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.16	0.72	0.105	1.79
100125	1-1/4 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.3	0.78	0.105	1.92
100125-4-656	1-1/4 inch Tubing	Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud	2.3	0.78	0.105	1.92
100150	1-1/2 inch Tubing	Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud	2.75	0.91	0.119	2.22
