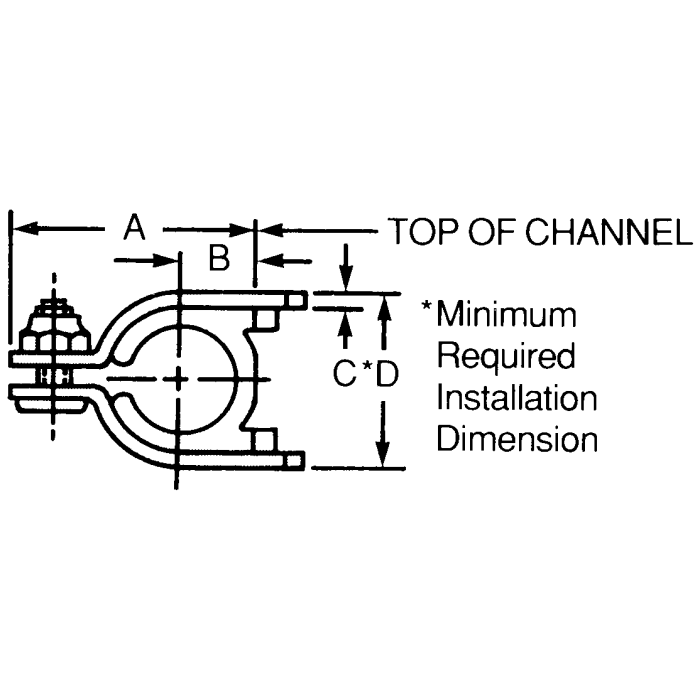

main product photo

100-200 Series Pipe & Tubing Support Clamp, 1/2 inch Tubing, Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud

Ask A Question
A
1.36
B
0.34
C
0.08
D
0.87
Brand
ZSI
Brand
ZSI
Pack Size
1.00
UOM
EA
Materials
Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud
Size
1/2 inch Tubing
Supplier Part Number
100050
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AG12, Alternate Part Number MI-01168594, Alternate Part Number MINO-01771X53002
Product Weight
0.25 lbs
Product Questions & Answers 2

Product Questions & Answers

these clamps rated for any kind of temperature extremes, or are they just meant for mild shop conditions?
Question by: Hubert H on Oct 9, 2025, 6:40 PM
The cushion on these clamps handles a range from -65°F all the way up to 275°F, so they hold up well in both cold environments and warmer industrial settings. That's a solid working range for most plant and equipment applications without any special accommodations.
Answer by: Customer Support on Oct 11, 2025, 6:28 AM
got 1/2 inch tubing on a skid, is this clamp the right size or is that 1/2 something else?
Question by: Rusty T on Aug 1, 2025, 9:52 AM
The size on this one is 1/2 inch tubing. It is meant to support and secure tubing in that size range in a pipe and tubing run.
Answer by: Customer Support on Aug 2, 2025, 2:43 PM

Similar Products

Model Number Size Materials A B C D Price Buy Now
100025 1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.11 0.22 0.075 0.62
100025-4-656 1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.11 0.22 0.075 0.62
100031 5/16 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037 3/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.24 0.28 0.075 0.75
100037-4-656 3/8 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.24 0.28 0.075 0.75
100050 1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.36 0.34 0.075 0.87
100062 5/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.5 0.41 0.075 1
100075 3/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.78 0.53 0.075 1.33
100075-4-656 3/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 1.78 0.53 0.075 1.33
100087 7/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 1.91 0.58 0.075 1.45
100100 1 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.03 0.66 0.105 1.66
100112 1-1/8 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.16 0.72 0.105 1.79
100125 1-1/4 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.3 0.78 0.105 1.92
100125-4-656 1-1/4 inch Tubing Clamp: 316 SS, Nut: SS Nylock, Stud / Bolt: SS weld stud 2.3 0.78 0.105 1.92
100150 1-1/2 inch Tubing Clamp: Zinc plated steel, Nut: Steel Nylock, Stud / Bolt: Steel weld stud 2.75 0.91 0.119 2.22
