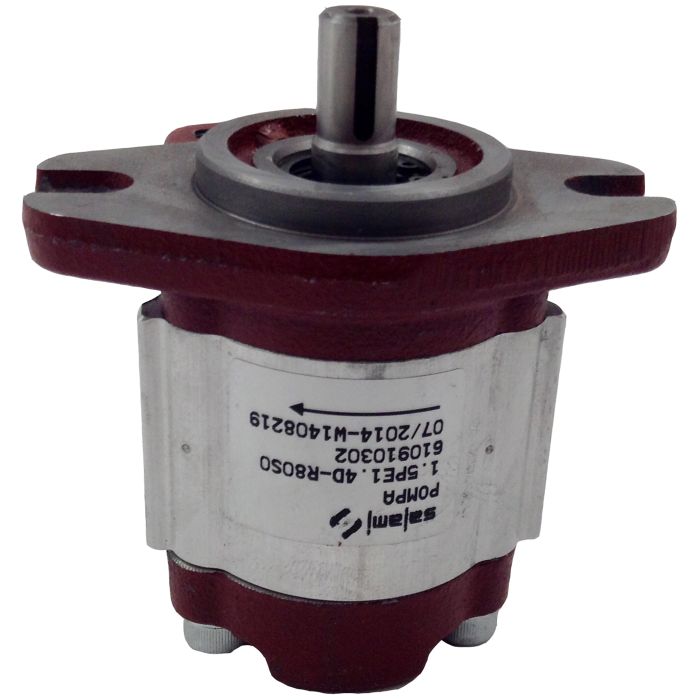

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 4-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.5 long Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Ask A Question
Displacement
0.13
Displacement
0.13
Brand
Salami S.P.A
Brand
Salami S.P.A
Pack Size
1.00
UOM
EA
Mount
4-Bolt SAE AA
Mount
4-Bolt SAE AA
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Pressure Rating
3625
Rated Flow
0.90
Rated Flow
0.9
Rotation
CW
Shaft
1/2 St. Keyed x 1.5 long
Shaft
1/2 St. Keyed x 1.5 long
Speed Rating
4250 RPM
Speed Rating
4250 RPM
Supplier Part Number
610910512
Alternate Part Numbers
Alternate Part Number C1MR14
Product Weight
5.00 lbs
Product Questions & Answers 1

Product Questions & Answers

pump says CW rotation -- can that be switched if my setup runs the opposite direction?
Question by: Troy S on Jun 21, 2025, 8:49 AM
Rotation on this pump can be reversed by repositioning the drive and driven shafts and rotating the front flange. It ships standard in clockwise, but the design does allow for a counterclockwise conversion without swapping out the whole unit.
Answer by: Customer Support on Jun 23, 2025, 6:18 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
610910302 0.09 0.6 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910312 0.13 0.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910322 0.17 1.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910342 0.25 1.8 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3400 RPM 3625
610910362 0.38 2.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3060 RPM 3335
610910372 0.46 3.4 Rectangular 1:8 Tapered European Flange CW 2805 RPM 2900
610910382 0.57 4.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2610
610910402 0.09 0.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910432 0.21 1.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910472 0.46 3.4 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2805 RPM 2900
610910492 0.67 4.7 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2465
610910512 0.13 0.9 4-Bolt SAE AA 1/2 St. Keyed x 1.5 long SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
