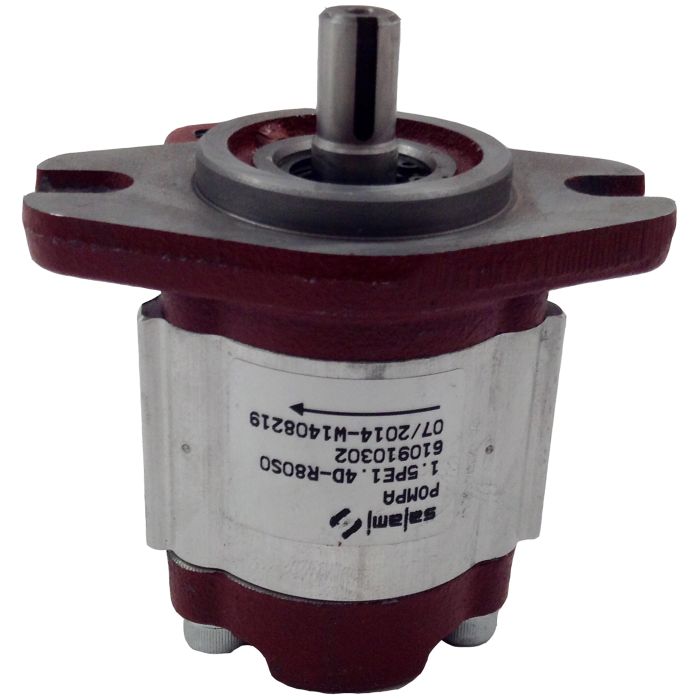

1.5PE Series Aluminium Gear Pump, 0.67 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

Displacement 0.67	Displacement 0.67	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE AA	Mount 2-Bolt SAE AA	Ports SAE -10 Side Inlet, SAE -8 Side Outlet	Ports SAE -10 Side Inlet, SAE -8 Side Outlet	Pressure Rating 2465	Rated Flow 4.70	Rated Flow 4.7	Rotation CW	Shaft 9T 20/40 DP Spline, SAE AA	Shaft 9T 20/40 DP Spline, SAE AA	Speed Rating 2550 RPM	Speed Rating 2550 RPM	Supplier Part Number 610910492	Alternate Part Numbers Alternate Part Number C1MV57	Product Weight 5.00 lbs

Product Questions & Answers 2

Product Questions & Answers

I need a pump for a project. What kind of fluid should I be using with this one?

Question by: Gary E on Jul 5, 2025, 5:13 PM

The recommended operating viscosity range is 85 to 297 SUS. You can go as low as 66 SUS, but you'll need to reduce the working pressure by 80% and run it at the minimum speed. Maximum starting viscosity is 3635 SUS.

Answer by: Customer Support on Jul 7, 2025, 1:57 PM

pump says CW rotation but i need to run it the other way, is that something that can actually be changed or am i buying the wrong unit?

Question by: Harold J on Jul 4, 2025, 1:05 PM

Rotation on this pump can be reversed without swapping out the unit entirely. You do it by reversing the position of the drive shaft and driven shaft, then rotating the front flange. It's a mechanical change rather than an ordering issue, so if counterclockwise is what your setup calls for, this pump can be configured that way.

Answer by: Customer Support on Jul 6, 2025, 9:56 AM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
