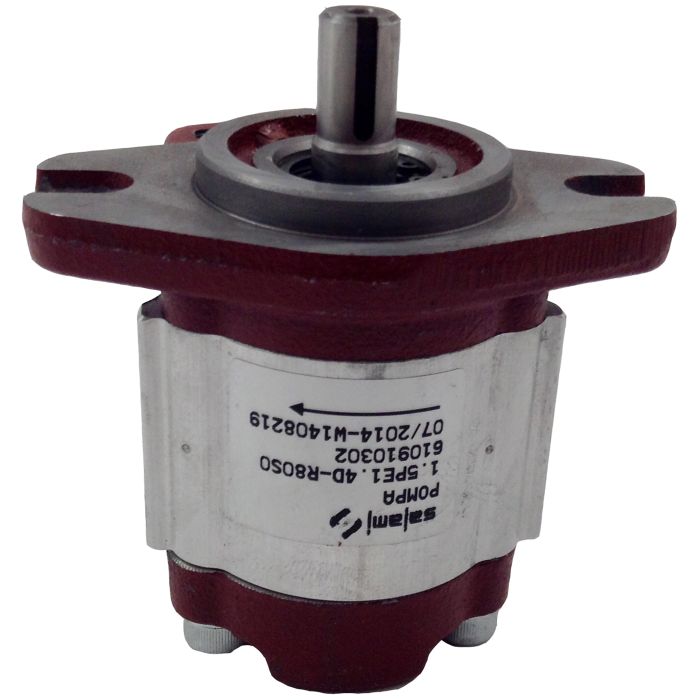

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

Displacement 0.46	Displacement 0.46	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE AA	Mount 2-Bolt SAE AA	Ports SAE -10 Side Inlet, SAE -8 Side Outlet	Ports SAE -10 Side Inlet, SAE -8 Side Outlet	Pressure Rating 2900	Rated Flow 3.40	Rated Flow 3.4	Rotation CW	Shaft 9T 20/40 DP Spline, SAE AA	Shaft 9T 20/40 DP Spline, SAE AA	Speed Rating 2805 RPM	Speed Rating 2805 RPM	Supplier Part Number 610910472	Alternate Part Numbers Alternate Part Number 1.5PE7.6D-R51S0, Alternate Part Number C1MV55	Product Weight 5.00 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this pump work with Viton seals if I need it to handle higher temperatures?

Question by: Harold C on Mar 4, 2026, 3:09 PM

With FPM (Viton) seals, this pump can handle temperatures from -4°F to 230°F. Standard Buna-N seals are rated for 5°F to 185°F.

Answer by: Customer Support on Mar 5, 2026, 3:27 PM

clockwise rotation only, or can this pump be flipped to run counterclockwise if needed?

Question by: Wade C on Jun 22, 2025, 9:17 PM

Rotation on this pump can be changed by reversing the positions of the drive shaft and driven shaft and rotating the front flange. It ships standard with clockwise rotation, but the configuration is not locked in permanently. Worth noting before you swap anything around though, the inlet and outlet ports are side-mounted, SAE -10 on the inlet and SAE -8 on the outlet, so plan your hydraulic connections accordingly once you decide on rotation direction.

Answer by: Customer Support on Jun 24, 2025, 2:07 PM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
