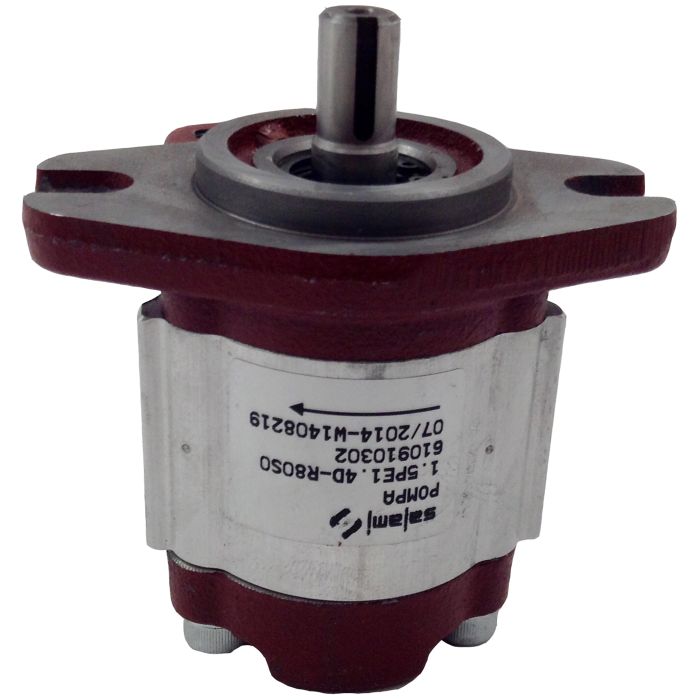

main product photo

1.5PE Series Aluminium Gear Pump, 0.21 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Ask A Question
Displacement
0.21
Displacement
0.21
Brand
Salami S.P.A
Brand
Salami S.P.A
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE AA
Mount
2-Bolt SAE AA
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Pressure Rating
3625
Rated Flow
1.60
Rated Flow
1.6
Rotation
CW
Shaft
9T 20/40 DP Spline, SAE AA
Shaft
9T 20/40 DP Spline, SAE AA
Speed Rating
3825 RPM
Speed Rating
3825 RPM
Supplier Part Number
610910432
Alternate Part Numbers
Alternate Part Number C1MV52
Product Weight
6.00 lbs
Product Questions & Answers 2

Product Questions & Answers

pump says CW rotation on it, can that be switched around if my setup needs it to go the other way?
Question by: Wes M on Jun 2, 2025, 1:01 PM
Rotation on this pump can be changed. You reverse the position of the drive shaft and driven shaft, then rotate the front flange. It's a field-adjustable configuration, so you're not locked into clockwise if your application runs counterclockwise.
Answer by: Customer Support on Jun 3, 2025, 8:50 PM
Will this gear pump hold up okay in a hydraulic system running around 3000 PSI on a regular basis?
Question by: Warren M on Jul 10, 2025, 2:50 PM
This pump is rated for continuous operation up to 3625 PSI, so it should be suitable for your system's working pressure. Just be sure your peak pressures don't exceed 4205 PSI.
Answer by: Customer Support on Jul 11, 2025, 3:56 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
610910302 0.09 0.6 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910312 0.13 0.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910322 0.17 1.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910342 0.25 1.8 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3400 RPM 3625
610910362 0.38 2.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3060 RPM 3335
610910372 0.46 3.4 Rectangular 1:8 Tapered European Flange CW 2805 RPM 2900
610910382 0.57 4.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2610
610910402 0.09 0.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910432 0.21 1.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910472 0.46 3.4 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2805 RPM 2900
610910492 0.67 4.7 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2465
610910512 0.13 0.9 4-Bolt SAE AA 1/2 St. Keyed x 1.5 long SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
