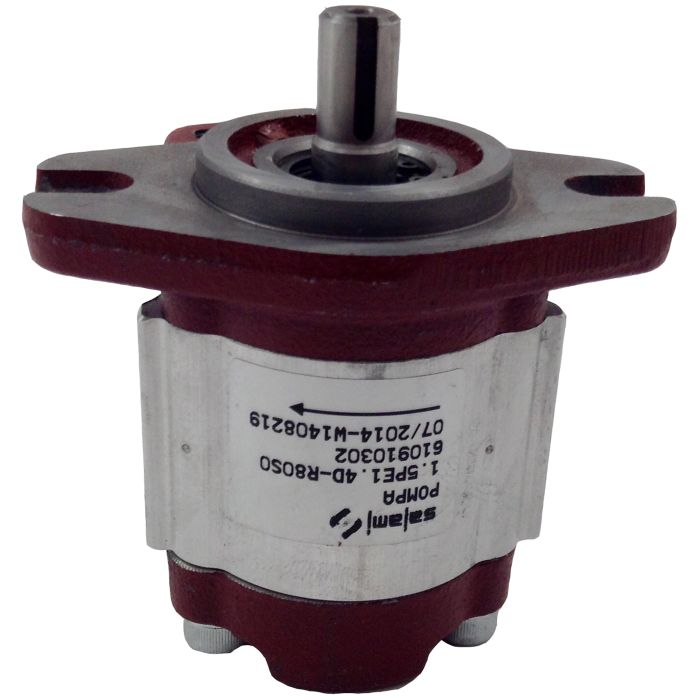

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Displacement 0.09	Displacement 0.09	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE AA	Mount 2-Bolt SAE AA	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Pressure Rating 3625	Rated Flow 0.60	Rated Flow 0.6	Rotation CW	Shaft 9T 20/40 DP Spline, SAE AA	Shaft 9T 20/40 DP Spline, SAE AA	Speed Rating 4250 RPM	Speed Rating 4250 RPM	Supplier Part Number 610910402	Alternate Part Numbers Alternate Part Number C1MV49	Product Weight 5.00 lbs

Product Questions & Answers 2

Product Questions & Answers

rotation on this one, is it clockwise or can it be swapped to counterclockwise if needed?

Question by: Curt S on Nov 20, 2025, 3:23 PM

Clockwise is the standard rotation as it comes. Switching it over is possible by reversing the position of the drive shaft and driven shaft and rotating the front flange. No special parts required for that change, just a repositioning during setup.

Answer by: Customer Support on Nov 22, 2025, 8:49 AM

I need a pump that can handle some heat. What's the highest temp this one can take?

Question by: Troy B on Oct 11, 2025, 6:28 PM

This pump can handle temperatures up to 185°F with the standard Buna-N seals. If you need higher temperature resistance, you can get it with FPM (Viton) seals which allow it to operate up to 230°F.

Answer by: Customer Support on Oct 12, 2025, 9:36 PM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
