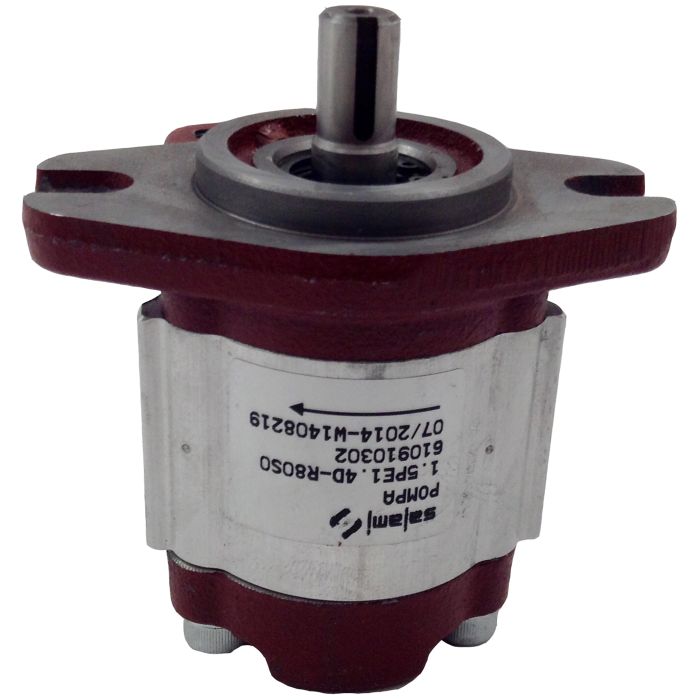

1.5PE Series Aluminium Gear Pump, 0.57 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

Ask A Question
Displacement
0.57
Displacement
0.57
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE AA
Mount
2-Bolt SAE AA
Ports
SAE -10 Side Inlet, SAE -8 Side Outlet
Ports
SAE -10 Side Inlet, SAE -8 Side Outlet
Pressure Rating
2610
Rated Flow
4.20
Rated Flow
4.2
Rotation
CW
Shaft
1/2 St. Keyed x 1.06 long SAE AA
Shaft
1/2 St. Keyed x 1.06 long SAE AA
Speed Rating
2550 RPM
Speed Rating
2550 RPM
Supplier Part Number
610910382
Alternate Part Numbers
Alternate Part Number 1.5PE9.3D-R80S0, Alternate Part Number C1MR11
Product Weight
7.00 lbs
Product Questions & Answers 1

Product Questions & Answers

Will this gear pump hold up if I'm running it pretty much all day, every day?
Question by: Dale P on Apr 21, 2025, 12:45 PM
For continuous operation, this pump is rated up to 2550 RPM. Just be sure to stay within the recommended fluid viscosity range of 66 SUS to 3635 SUS to keep it running smoothly.
Answer by: Customer Support on Apr 22, 2025, 1:48 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
610910302 0.09 0.6 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910312 0.13 0.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910322 0.17 1.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910342 0.25 1.8 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3400 RPM 3625
610910362 0.38 2.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3060 RPM 3335
610910372 0.46 3.4 Rectangular 1:8 Tapered European Flange CW 2805 RPM 2900
610910382 0.57 4.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2610
610910402 0.09 0.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910432 0.21 1.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910472 0.46 3.4 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2805 RPM 2900
610910492 0.67 4.7 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2465
610910512 0.13 0.9 4-Bolt SAE AA 1/2 St. Keyed x 1.5 long SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
