main product photo

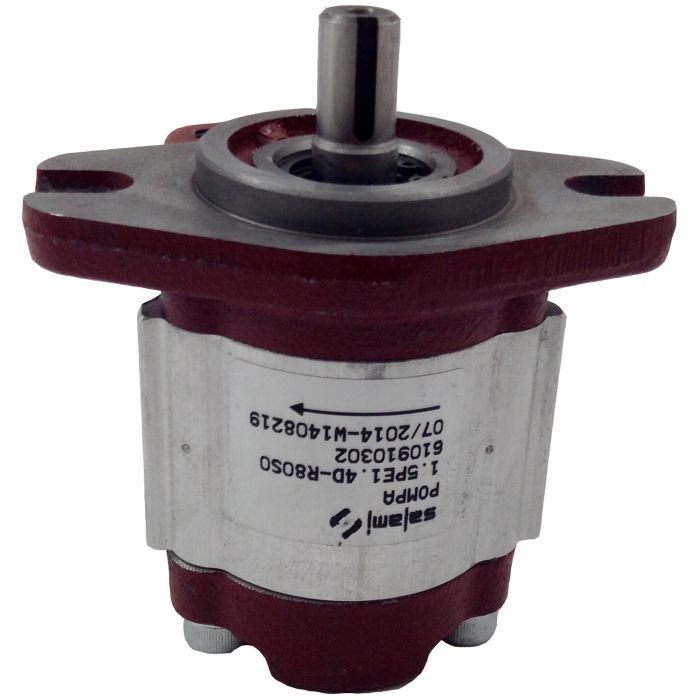

1.5PE Series Aluminium Gear Pump, 0.25 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Ask A Question
Displacement
0.25
Displacement
0.25
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE AA
Mount
2-Bolt SAE AA
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Pressure Rating
3625
Rated Flow
1.80
Rated Flow
1.8
Rotation
CW
Shaft
1/2 St. Keyed x 1.06 long SAE AA
Shaft
1/2 St. Keyed x 1.06 long SAE AA
Speed Rating
3400 RPM
Speed Rating
3400 RPM
Supplier Part Number
610910342
Alternate Part Numbers
Alternate Part Number C1MV46
Product Weight
7.00 lbs
Product Questions & Answers 2

Product Questions & Answers

runs clockwise rotation on this one, right? got a setup that won't work with a CCW pump and don't want to order the wrong thing again
Question by: Steve H on Jul 16, 2025, 1:51 PM
Correct, this pump runs clockwise rotation as configured. Worth knowing though, rotation can be changed by reversing the positions of the drive shaft and driven shaft and rotating the front flange, so it's not permanently locked to CW if your needs ever change down the road.
Answer by: Customer Support on Jul 17, 2025, 2:15 PM
What kind of operating temps can this pump handle?
Question by: Gene H on Feb 5, 2026, 8:24 AM
The standard Buna-N seals allow for operating temperatures from 5°F to 185°F. If you need a wider range, FPM seals (Viton) will handle -4°F to 230°F.
Answer by: Customer Support on Feb 6, 2026, 4:48 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
610910302 0.09 0.6 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910312 0.13 0.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910322 0.17 1.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910342 0.25 1.8 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3400 RPM 3625
610910362 0.38 2.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3060 RPM 3335
610910372 0.46 3.4 Rectangular 1:8 Tapered European Flange CW 2805 RPM 2900
610910382 0.57 4.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2610
610910402 0.09 0.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910432 0.21 1.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910472 0.46 3.4 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2805 RPM 2900
610910492 0.67 4.7 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2465
610910512 0.13 0.9 4-Bolt SAE AA 1/2 St. Keyed x 1.5 long SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
