main product photo

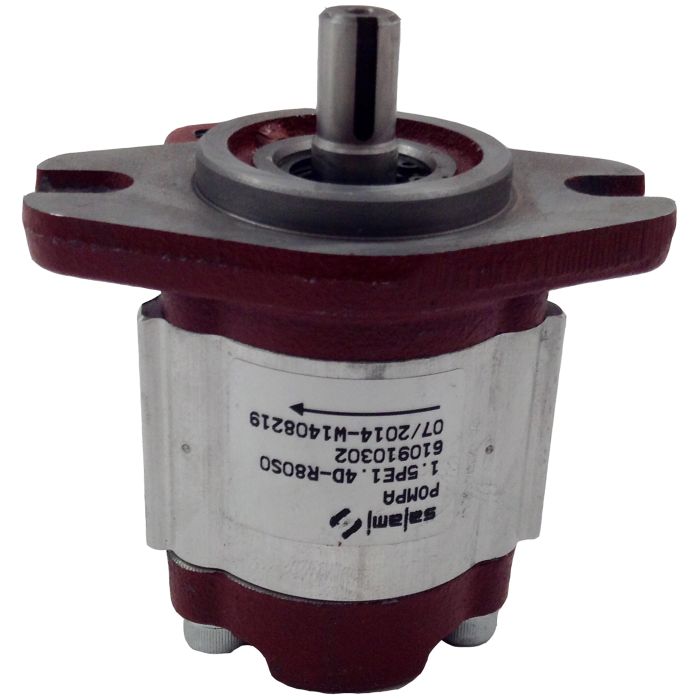

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Ask A Question
Displacement
0.13
Displacement
0.13
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE AA
Mount
2-Bolt SAE AA
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Pressure Rating
3625
Rated Flow
0.90
Rated Flow
0.9
Rotation
CW
Shaft
1/2 St. Keyed x 1.06 long SAE AA
Shaft
1/2 St. Keyed x 1.06 long SAE AA
Speed Rating
4250 RPM
Speed Rating
4250 RPM
Supplier Part Number
610910312
Alternate Part Numbers
Alternate Part Number 1.5PE2.1D-R80S0, Alternate Part Number C1MQ97
Product Weight
4.20 lbs
Product Questions & Answers 1

Product Questions & Answers

Will this pump work with Viton seals if I need it to handle higher temps?
Question by: Wes T on Mar 2, 2026, 7:48 AM
Yes, this gear pump can be configured with FPM (Viton) seals which allows it to operate in temperatures from -4°F to 230°F. The standard Buna-N seals are rated for 5°F to 185°F.
Answer by: Customer Support on Mar 3, 2026, 9:32 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
610910302 0.09 0.6 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910312 0.13 0.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910322 0.17 1.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910342 0.25 1.8 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3400 RPM 3625
610910362 0.38 2.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3060 RPM 3335
610910372 0.46 3.4 Rectangular 1:8 Tapered European Flange CW 2805 RPM 2900
610910382 0.57 4.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2610
610910402 0.09 0.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910432 0.21 1.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910472 0.46 3.4 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2805 RPM 2900
610910492 0.67 4.7 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2465
610910512 0.13 0.9 4-Bolt SAE AA 1/2 St. Keyed x 1.5 long SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
