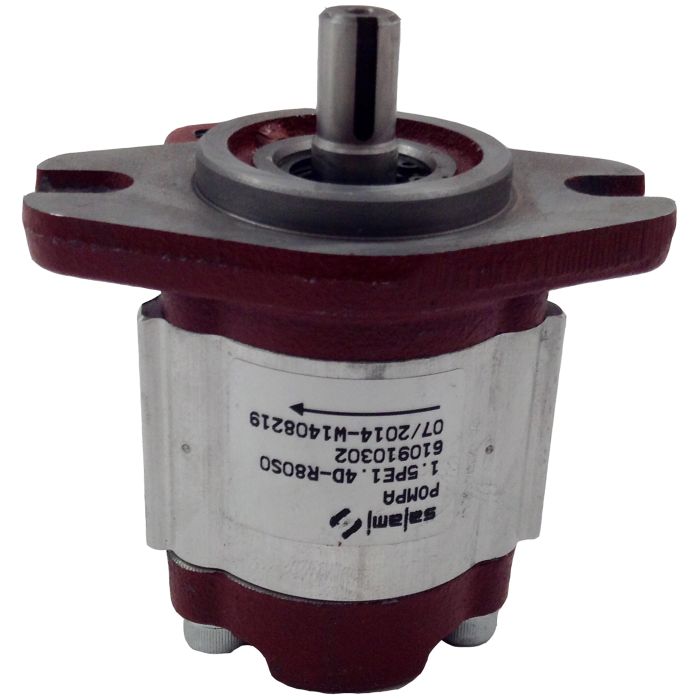

main product photo

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Ask A Question
Displacement
0.09
Displacement
0.09
Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE AA
Mount
2-Bolt SAE AA
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Ports
SAE -8 Side Inlet, SAE -6 Side Outlet
Pressure Rating
3625
Rated Flow
0.60
Rated Flow
0.6
Rotation
CW
Shaft
1/2 St. Keyed x 1.06 long, SAE AA
Shaft
1/2 St. Keyed x 1.06 long, SAE AA
Speed Rating
4250 RPM
Speed Rating
4250 RPM
Supplier Part Number
610910302
Alternate Part Numbers
Alternate Part Number 1.5PE1.4D-R80S0, Alternate Part Number 1.5PE1.4D-R80S0 PUMP, Alternate Part Number C1MQ96
Product Weight
4.20 lbs
Product Questions & Answers 2

Product Questions & Answers

Hey, will this gear pump bolt right up to a standard SAE AA mount? Just wanna make sure before I order.
Question by: Peggy D on Sep 4, 2025, 9:45 PM
Yes, this 1.5PE series gear pump uses a 2-Bolt SAE AA mounting flange.
Answer by: Customer Support on Sep 6, 2025, 6:07 AM
pump runs clockwise right? wanting to make sure before i go swappin anything out on my skid unit
Question by: Jean T on Aug 2, 2025, 1:45 PM
Clockwise rotation is the standard configuration on this pump. Worth knowing though, rotation can be changed by swapping the drive shaft and driven shaft positions and rotating the front flange, so it's not a permanent limitation if your setup calls for something different down the road.
Answer by: Customer Support on Aug 4, 2025, 7:49 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
610910302 0.09 0.6 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910312 0.13 0.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910322 0.17 1.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910342 0.25 1.8 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3400 RPM 3625
610910362 0.38 2.9 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3060 RPM 3335
610910372 0.46 3.4 Rectangular 1:8 Tapered European Flange CW 2805 RPM 2900
610910382 0.57 4.2 2-Bolt SAE AA 1/2 St. Keyed x 1.06 long SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2610
610910402 0.09 0.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
610910432 0.21 1.6 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -8 Side Inlet, SAE -6 Side Outlet CW 3825 RPM 3625
610910472 0.46 3.4 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2805 RPM 2900
610910492 0.67 4.7 2-Bolt SAE AA 9T 20/40 DP Spline, SAE AA SAE -10 Side Inlet, SAE -8 Side Outlet CW 2550 RPM 2465
610910512 0.13 0.9 4-Bolt SAE AA 1/2 St. Keyed x 1.5 long SAE -8 Side Inlet, SAE -6 Side Outlet CW 4250 RPM 3625
