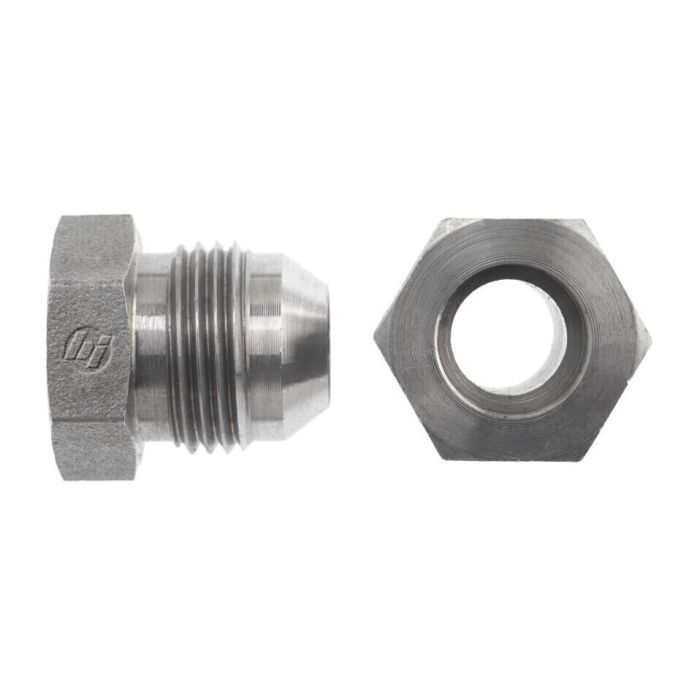

20BORE-20MJ STRAIGHT

Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
0403-20-20
Product Weight
0.42 lbs

Product Questions & Answers

what exactly is the bore end on this adapter, is that a port thread or does it connect to a tube directly?
Question by: Peggy B on Aug 13, 2025, 8:06 PM
The B1 end is a bore type connection with a 1-1/4 inch tube OD and a drill diameter of 1.256 mm. That end accepts a tube directly rather than threading into a port. The B2 end is a 1 5/8-12 Male JIC fitting with a 37-degree flare, built to SAE J514 spec. So you've got a bore connection on one side and a standard JIC male on the other, which is a pretty common pairing when you're transitioning between tube and flared fittings in a hydraulic line.
Answer by: Customer Support on Aug 15, 2025, 7:48 PM
